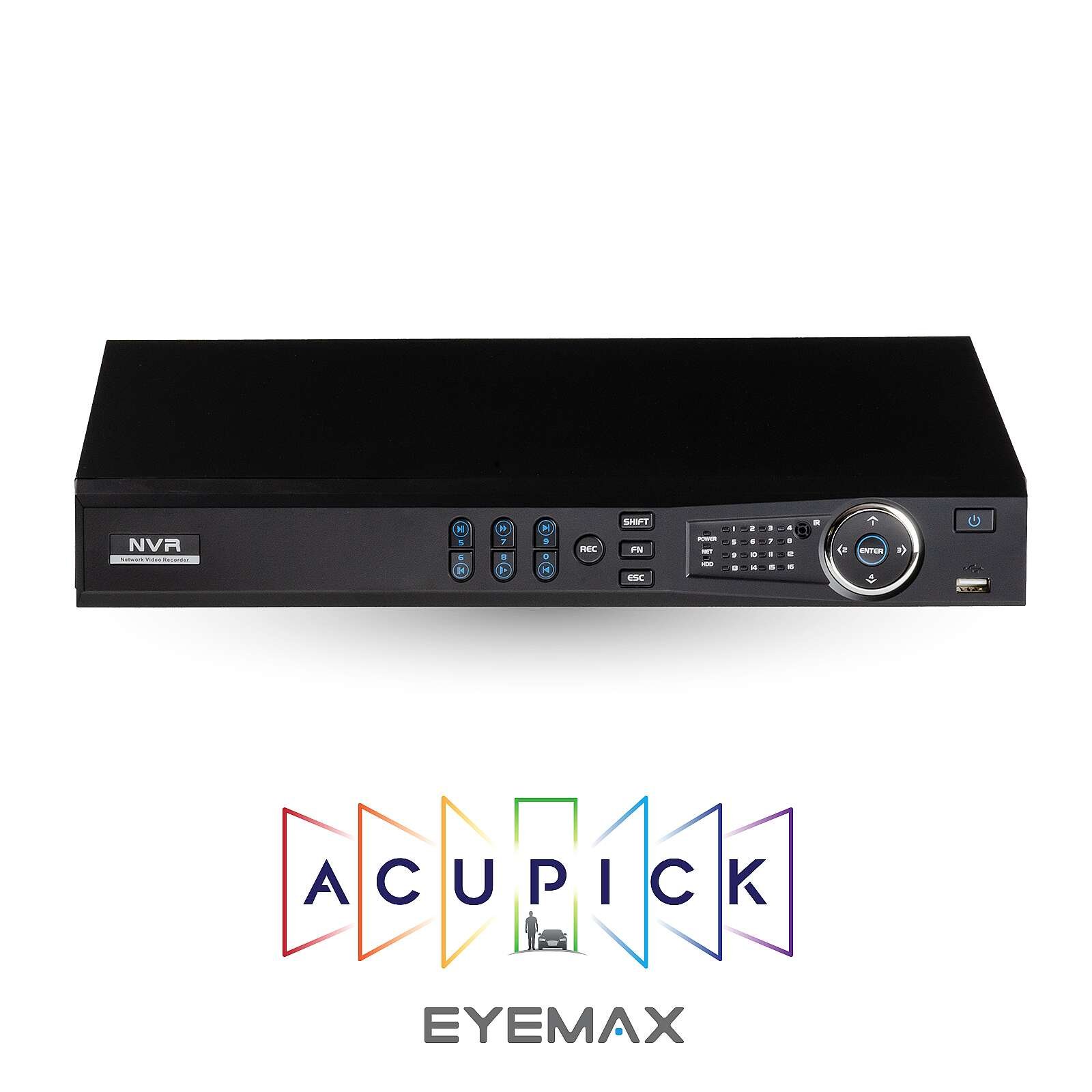

16CH AcuPick AI NVR System, 16 PoE
$0.00
AcuPick • WizSense AI • 16 PoE • ≤ 130W PoE Output (AF/AT) • ePoE on Port 1-8 • 384Mbps In/Outgoing Bandwidth • Face Recognition • Face Detection • Perimeter Protection • Video Metadata • Heat Map • ANPR • SMD Plus • 2 × SATA • 1U
Quantity:
AcuPick • WizSense AI • 16 PoE • ≤ 130W PoE Output (AF/AT) • ePoE on Port 1-8 • 384Mbps In/Outgoing Bandwidth • Face Recognition • Face Detection • Perimeter Protection • Video Metadata • Heat Map • ANPR • SMD Plus • 2 × SATA • 1U
AcuPick • WizSense AI • 16 PoE • ≤ 130W PoE Output (AF/AT) • ePoE on Port 1-8 • 384Mbps In/Outgoing Bandwidth • Face Recognition • Face Detection • Perimeter Protection • Video Metadata • Heat Map • ANPR • SMD Plus • 2 × SATA • 1U
Product Information
Introduction
WizSense is a series of AI products using an independent AI chip and deep learning algorithm. It focuses on high-accuracy human and vehicle detection, enabling quick action on defined targets. WizSense offers intelligent, simple, and inclusive solutions.
Overview
The NVR offers high performance and advanced recording technology for IP video surveillance. Its powerful processor ensures high access, forwarding bandwidth, and strong decoding capabilities for smooth streaming. With a built-in AI chip and advanced deep learning algorithms, it supports high-precision face recognition and perimeter protection, enhancing event response and video interactivity. Compatible with numerous third-party devices, it is an excellent solution for surveillance systems with Video Management Software (VMS).
AcuPick
This leading search technology uses front-end and back-end intelligence to quickly and accurately locate targets in vast video data.
Perimeter Protection
Automatically filters false alarms from animals, leaves, and bright lights. Enables secondary target recognition, improving alarm accuracy.
Face Detection
Face detection identifies human faces in video using deep learning algorithms. It supports detection, tracking, optimization, and capturing, outputting the best face snapshot.
Face Recognition
Face recognition technology extracts features from captured faces and compares them to a face database to identify individuals.
Heat Map by Camera
Heat map technology displays crowd density and appearance probability using color-coded statistics of people over time and space.
ANPR by Camera
Using deep learning algorithms, ANPR technology recognizes vehicle license plates with ANPR cameras. It supports blocklist/allowlist modes and searches for target vehicles in recorded video.
SMD Plus
Smart Motion Detection technology uses intelligent algorithms to categorize targets and filter out non-essential motion detection alarms, ensuring effective and accurate alerts.
FEATURES
- Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
- Max. decoding capability: 32 × 1080p@30 fps or 16 × 4MP@30 fps
- Max. 384 Mbps incoming/recording/outgoing bandwidth.
- Support AcuPick with Max. 16-Channel.
- Support N+M cluster.
- AI by recorder: 2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus.
- AI by camera: Face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, and people counting.
- Security baseline 2.3
SPECIFICATIONS
| System | |
|---|---|
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI | AI |
| AI by Recorder | Face detection; face recognition; perimeter protection; SMD Plus |
| AI by Camera | Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map |
| AcuPick AI by Camera + Recorder | Max. 16-channel, 1 combined event per channel / s | Perimeter Protection |
| Perimeter Performance AI by Recorder (Number of Channels) | 4 channels, 10 IVS rules for each channel |
| Perimeter Performance of AI by Camera (Number of Channels) | 16 channels | Face Detection |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance of AI by Recorder (Number of Channels) | 2 channels (up to 12 face images/s each channel) |
| Face Detection Performance of AI by Camera (Number of Channels) | 16 channels | Face Recognition |
| Face Database Capacity | Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image. |
| Face Recognition Performance of AI by Recorder (Number of Channels) | 1. 16-channel FD (by camera) + FR (by recorder), image stream: 16 face images / s 2. 2-channe FD (by recorder) + FR (by recorder), video stream: 12 face images / s |
| Face Recognition Performance of AI by Camera (Number of Channels) | 16 channels | SMD Plus |
| SMD Plus by Recorder | 8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera | 16 channels | Video Metadata |
| Metadata Performance of AI by Camera (Number of Channels) | 8 channels |
| Human Attributes | Top color, top type, bottom color, bottom type, hat, bag, age, gender and umbrella |
| Motor Vehicle Attributes | License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location. |
| Non-motor Vehicle Attributes | Vehicle model, vehicle color, number of persons, helmet. | Vehicle License Plate Comparison |
| ANPR by Camera (Number of Channels) | 8 channels |
| License Plate Database Capacity | 1. Create up to 20,000 plate numbers. 2. Blocklist and allowlist |
Audio and Video |
| Access Channel | 16 |
| Network Bandwidth | AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing |
| Resolution | 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p;720p; D1; CIF; QCIF |
| Decoding Capability | AI disabled: 2-channel 32 MP@25 fps; 2-channel 24 MP@25 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 12-channel 5 MP@30 fps; 16-channel 4 MP@30 fps AI enabled: 1-channel 32 MP@25 fps; 1-channel 24 MP@25 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps; 6-channel 8 MP@30 fps; 8-channel 5 MP@30 fps; 12-channel 4 MP@30 fps |
| Video Output | 1 VGA, 1 HDMI VGA:1920 × 1080, 1280 × 1024, 1280 × 720 HDMI:3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 Heterogeneous video source output for HDMI and VGA |
| Multi-screen Display | Main screen: 1 / 4 / 8 / 9 / 16 Sub screen: 1 / 4 / 8 / 9 / 16 |
| Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung | Compression Standard |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio Compression | G.711a; G.711u; PCM; G726 | Network |
| Network Protocol | HTTP; HTTPS; TCP / IP; IPv4 / IPv6; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 22.12 (Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome;IE;Safari;Edge;Firefox | Recording Playback |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | General, motion detection; intelligent; alarm; POS |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) | Storage |
| Disk Group | Yes | Alarm |
| General Alarm | Motion detection; privacy masking; local alarm |
| Anomaly Alarm | Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan; cybersecurity exception |
| Intelligent Alarm | Face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map |
| Alarm Linkage | Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email | Port |
| Audio Input | 1-channel RCA |
| Audio Output | 1-channel RCA |
| Alarm Input | 4 channels |
| Alarm Output | 2 channels |
| HDD Interface | 2 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature. |
| RS-232 | 1 |
| RS-485 | 1 |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 3.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1(10/100/1000 Mbps Ethernet port, RJ-45) |
| PoE Port | 16 ports, 10 / 100 Mbps, IEEE 802.3 af / at, 1 ~ 8 ports support ePoE |
General |
| Power Supply | 100 ~ 240 VAC, 47 ~ 63 Hz |
| Power Consumption | Total output of NVR is ≤ 10W (without HDD) Total output power of PoE is 130W, the maximum output power of a single port is 25.5W |
| Net Weight | 2.66 kg (5.86 lb) |
| Gross Weight | 3.82 kg (8.42 lb) |
| Product Dimensions | 375.0 mm × 329.3 mm × 53.0mm (14.76" × 12.96" × 2.09") (W × D × H) |
| Packaging Dimensions | 449.0 mm × 170.0 mm × 421.0 mm (17.68" × 6.69" × 16.57") (W × D × H) |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10% ~ 93% (RH) |
| Installation | Rack or desktop |
| Certifications | FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032: 2015+A1: 2020; EN IEC 61000 ~ 3-2: 2019+A1: 2021; EN 61000 ~ 3-3:2013+A1: 2019+A2: 2021; EN 55035: 2017+A11: 2020; EN 50130 ~ 4: 2011+A1: 2014 CE-LVD: EN 62368 ~ 1: 2014 |
