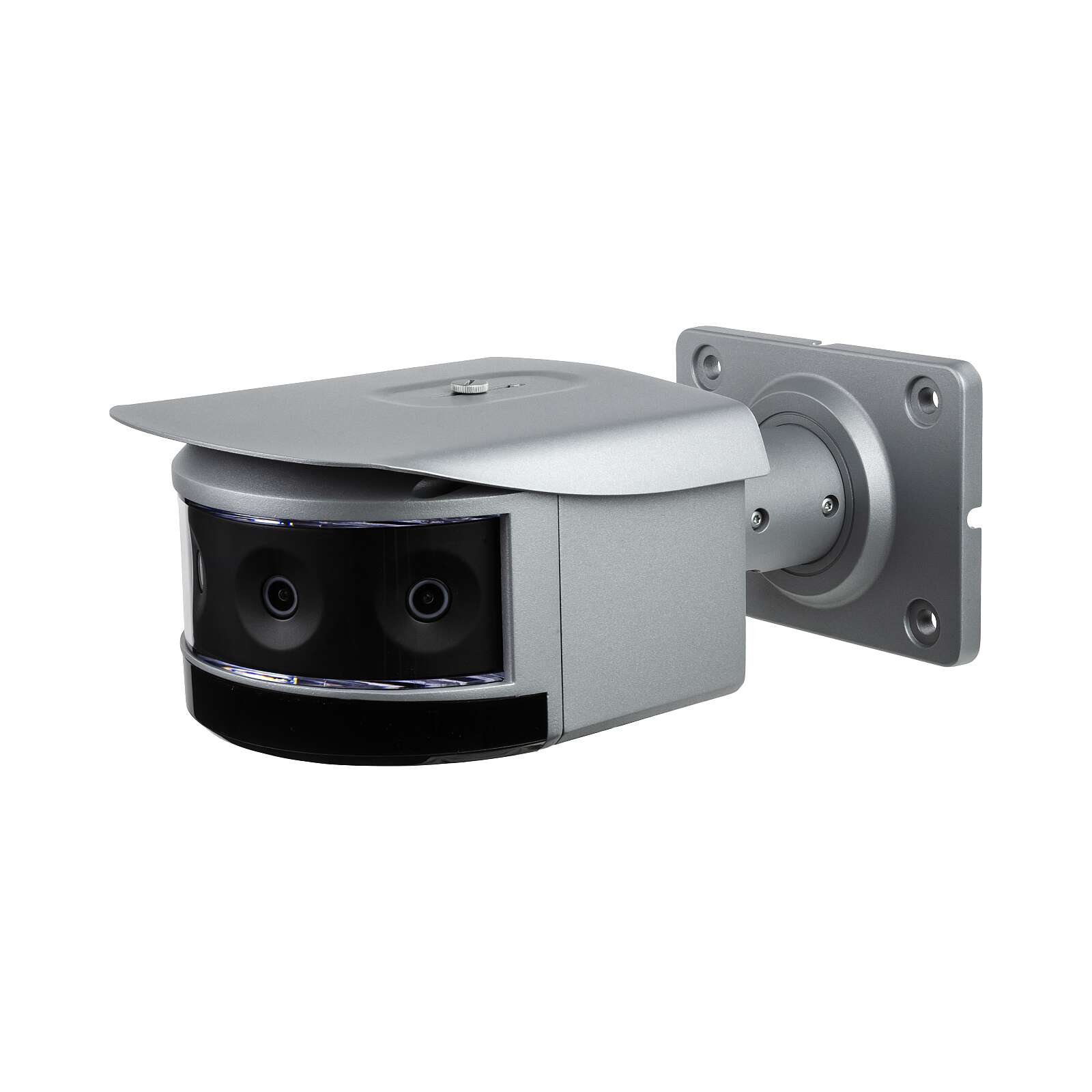

4 × 2MP Multi-Sensor Panoramic Bullet IP Camera, WizMind, Crowd + Vehicle Density, IP67, IK10, 12VDC / 24VAC / PoE

WizMind is a full portfolio of solutions composed of project-oriented products including IPC, NVR, PTZ, DVR, Thermal and s`ftware platform which adopts industry-leading deep learning algorithms. Focusing on customer’s requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals.

Series Overview

The splicing camera supports a 180° panoramic view and 4-channel hard-ware splicing to realize HD panoramic surveillance. The camera supports crowd situation analysis, vehicle situation analysis, and perimeter protection. It is widely applied in various scenes such as squares, airports, and traffic.

Smart H.265+ & Smart H.264+

With advanced scene-adaptive rate control algorithm, smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Panoramic Splicing

With advanced splicing algorithm, Panoramic Splicing technology deletes overlapped area and splices multiple images to be a complete panorama. The field of view of the spliced image can be up to 360°, which largely improves surveillance efficiency and user experience. Generally, after splicing, the field of view of four-sensor camera can be 180°, and the field of view of eight-sensor camera can be 360°.

Crowd Density

With deep learning algorithm, Crowd Density technology can detect the crowd density on the image, and display it on heat map; it can detect people quantity and density in selected area and set threshold. When the number or density is larger or smaller than the threshold, it triggers linkage.

Vehicle Density

With deep learning algorithm, Vehicle Density technology analyses the vehicle situation in the image, such as vehicle number in selected area. You can set threshold, and when the number is larger or smaller than the threshold, it triggers linkage.

IVS

With advanced video algorithm, IVS technology supports intelligent functions, such as tripwire and intrusion.

Cyber Security

Network camera is equipped with a series of key security technologies, such as security authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage, which improve its security defense and data protection, and prevent malicious programs from invading the device.

Protection (IP67, IK10, wide voltage)

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J). Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

FEATURES

• Four 2MP 1/2.8″ CMOS image sensor, low illuminance, high image definition
• Outputs max. 8MP (4096 × 1800) @30 fps
• H.265 codec, high compression rate, ultra-low bit rate
• Built-in IR LED, max. IR distance: 30 m
• ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
• DWDR, 3D NR, HLC, BLC, digital watermarking
• Intelligent functions: Crowd distribution map, Vehicle Density situation
• Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
• Alarm: 2 in, 2 out; audio: 1 in, 1 out; 485; BNC; supports max. 256 G SD card
• 12V DC/24V AC/PoE power supply; easy for installation
• Supports object tracking
• IP67, IK10 protection
