4K H265 64CH 8HDD upto 12MP Network Video Recorder

$0.00

H.265/H.264/MJPEG/MPEG4 codec decoding • Max 320Mbps incoming bandwidth • Up to 12Mp resolution preview&playback • 2HDMI/VGA simultaneous video output • 3D intelligent positioning with Dahua PTZ camera • Support RAID 0/1/5/6/10

Quantity:
Add To Cart

H.265/H.264/MJPEG/MPEG4 codec decoding • Max 320Mbps incoming bandwidth • Up to 12Mp resolution preview&playback • 2HDMI/VGA simultaneous video output • 3D intelligent positioning with Dahua PTZ camera • Support RAID 0/1/5/6/10

H.265/H.264/MJPEG/MPEG4 codec decoding • Max 320Mbps incoming bandwidth • Up to 12Mp resolution preview&playback • 2HDMI/VGA simultaneous video output • 3D intelligent positioning with Dahua PTZ camera • Support RAID 0/1/5/6/10

Product Accordion Example

Product Information

System Overview

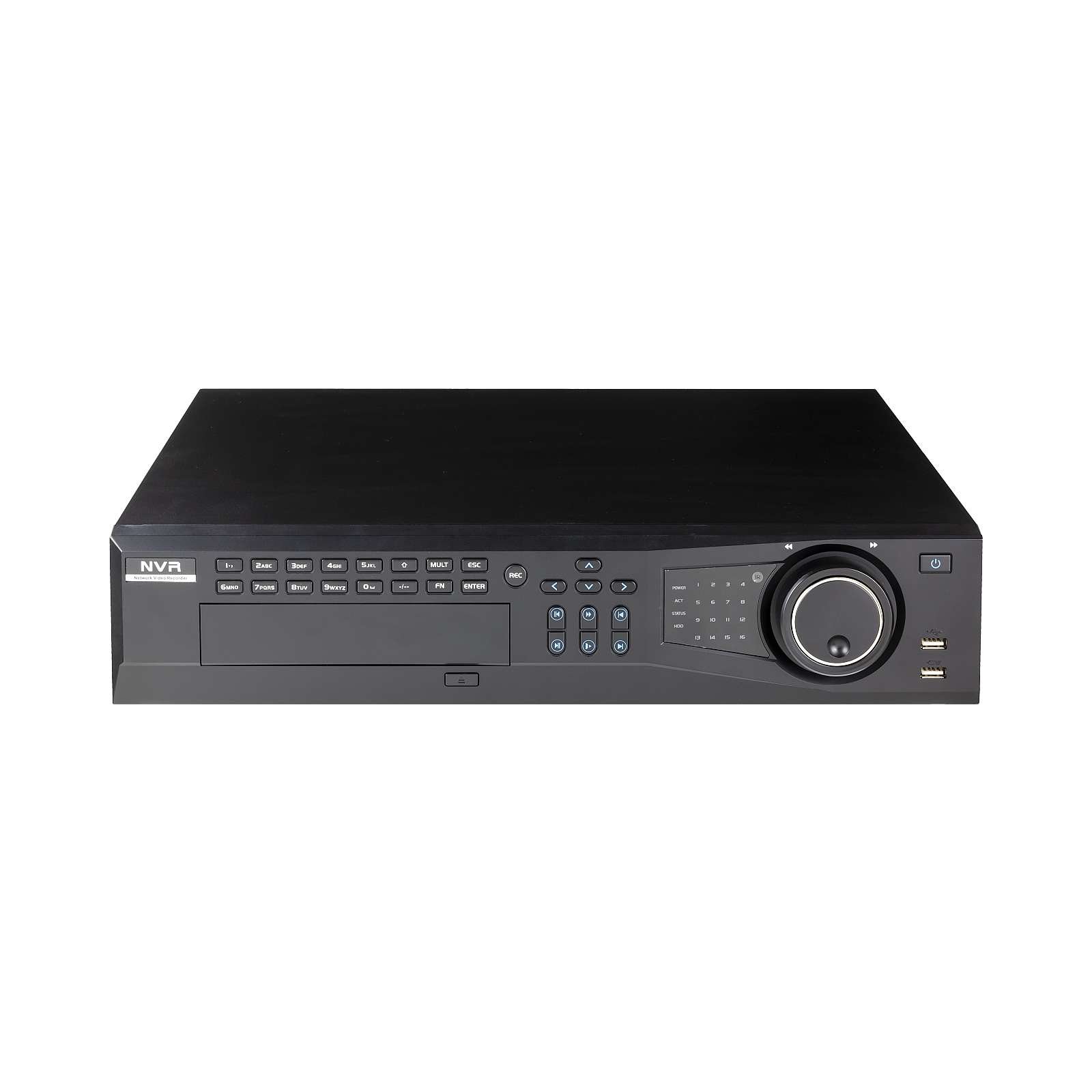

Eyemax EMNT 5864 ~ 4K network video recorder offers a excellent performance and high recording quality for IP video surveillance applications. For applications where details are critical for identification, this professional NVR provides a powerful processor with up to 4K resolution. Additionally, the NVR features a mouse shortcut operation menu, remote management and control, centre storage, edge storage, and back up storage. Designed as a cost-effective, easy installation, this NVR is ideal for a wide range of applications such as public safety, water conservancy, transportation, city centers, education, and financial institutions. The NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems with or without a video management system (VMS). Its open architecture supports multi-user access and is compatible with ONVIF 2.4, enabling interoperability when combined with 4K cameras.

Functions

Fisheye Dewarping

The NVR features multiple fisheye dewarping modes to make viewing video easy whether its live or during playback.

4K Resolution

The NVR supports 4K ultra HD resolution (3840 × 2160) for recording, live viewing and playback.

Easy4ip

You can monitor at anytime and anywhere with Easy4ip. There are 2 modes Easy4ip web client and mobile app. With this function, you can manage your devices more conviently.

Intelligent Video System (IVS)

With built-in intelligent video analytics, the NVR has the ability to detect and analyze moving objects for improved video surveillance. The NVR provides optional standard intelligence at the edge allowing detection of multiple object behaviors such as abandoned or missing objects. IVS also supports Tripwire analytics, allowing the camera to detect when a pre-determined line has been crossed, People Counting, ideal for business intelligence, and Face Detection, for searching or identification of individuals.

Heat Map

The NVR’s Heat Map option highlights the areas with the highest concentration of people. This information can then be exported into a customized report to assist in business or forensic analysis.

ANPR

Automatic Number Plate Recognition available for convenient entrance/ exit management. Support plate recognition, black/white list import/ export, add/delete B/W list number, search result from recorded video.

Point of Sale (POS)

Ideal for grocery and retail stores, the optional POS solution allows the NVR to receive a POS transaction via corresponding video. This feature allows merchants to analyze specific transactions via the Fuzzy search Algorithm.

ANR (Automatic Network Replenishment Technology)

Video record in SD card in IP cameras when the network breaks down, and after the network recovered, the video will be transferred to NVR and then recorded in it.

SPECIFICATIONS

System
Main Processor Quad-core embedded processor
Operating System Embedded LINUX

Display
Interface 2 HDMI (1 HDMI up to 3840 × 2160, Different Source ), 1 VGA
Resolution 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720, 1024 × 768
Multi-screen Display 1st screen: 16CH: 1/4/8/9/16 32CH: 1/4/8/9/16/25/36 64CH: 1/4/8/9/16/25/36 2nd screen: 1/4/8/9/16
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm input 16 Channel, Low Level Effective, Green Terminal Interface
Relay Output 6 Channel, NO/NC Programmable, Green Terminal Interface
Tracking Trigger Event N/A

Playback and Backup
Sync Playback 1/4/9/16
Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network/Internal SATA burner/eSATA Device

Storage
Internal HDD 8 SATA III Ports, up to 8TB capacity for each HDD
HDD Mode Single, Raid 0/1/5/6/10 (Enterprise-level HDDs are recommended)
eSATA 1 eSATA port
SAS N/A

Auxiliary Interface
Front Cover N/A
USB 4 ports (2 Rear USB3.0,2 Front USB2.0)
RS232 1 Port, for PC Communication and Keyboard
RS485 1 Port, for PTZ Control

Third-party Support
Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more

Audio and Video
IP Camera Input 16/32/64 Channel
Two-way Talk 1 Channel Input, 1 Channel Output, RCA

Recording
Compression H.265/H.264/MJPEG/MPEG4
Resolution 12Mp/8Mp/6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1&etc.
Record Rate 320Mbps
Bit Rate 16kbps~20Mbps for per channel
Record Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Network
Interface 2 RJ-45 ports (10/100/1000Mbps)
Ethernet Port 2 Ethernet Ports Joint Working or 2 Independent 1000Mbps Ethernet Ports
PoE N/A
Network Function HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P
Optical Fiber Interface N/A
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.4, CGI Conformant

Electrical
Power Supply Single, AC 100 ~ 240V, 50/60 Hz
Power Consumption <16.7W (without HDD)

Environmental
Operating Conditions −10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions −20°C ~ +70°C (−4°F ~ +158°F), 0 ~ 90% RH

Construction
Dimensions(W×D×H) 2U, 440mm × 450.1mm × 95mm (17.3" × 17.7" × 3.7")
Net Weight 6.55kg (14.4 lb) (without HDD)
Gross Weight 9.5kg(20.94 lb)(without HDD)

Certifications
CE EN55022, EN55024, EN50130 ~ 4, EN60950 ~ 1
FCC Part15 subpartB,ANSI C63.4 ~ 2014
UL UL60950 ~ 1+CAN/CSA C22.2 No.60950 ~ 1
