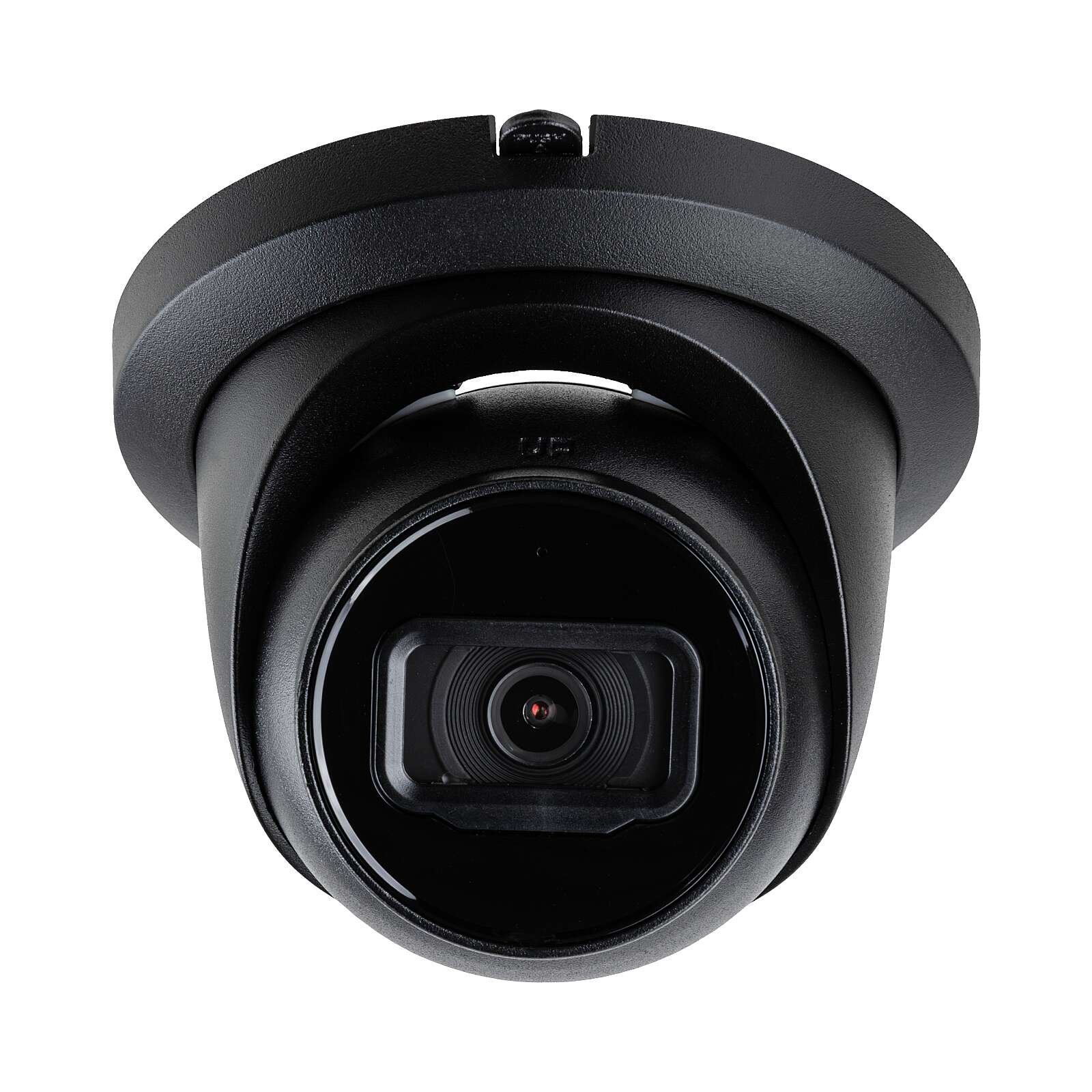

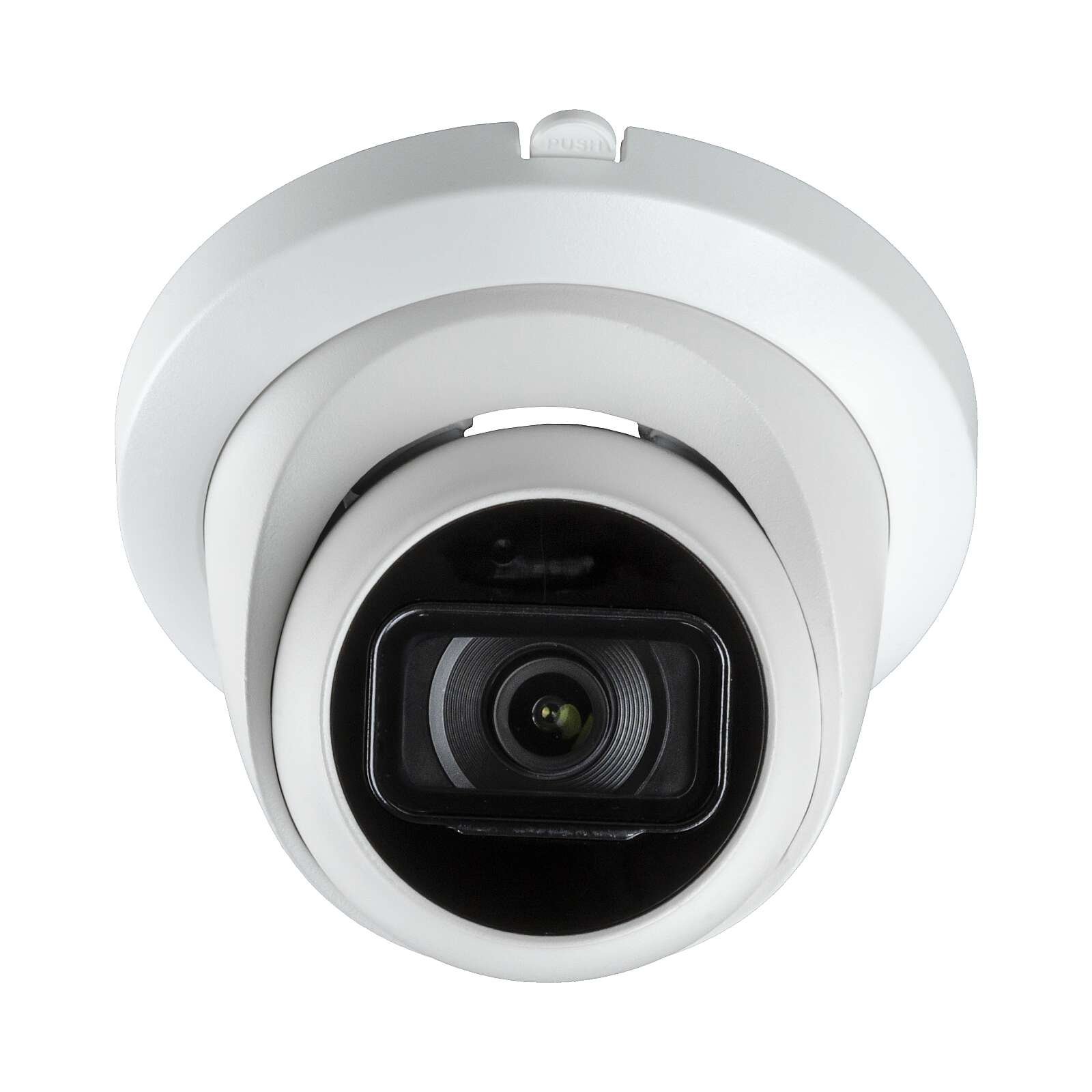

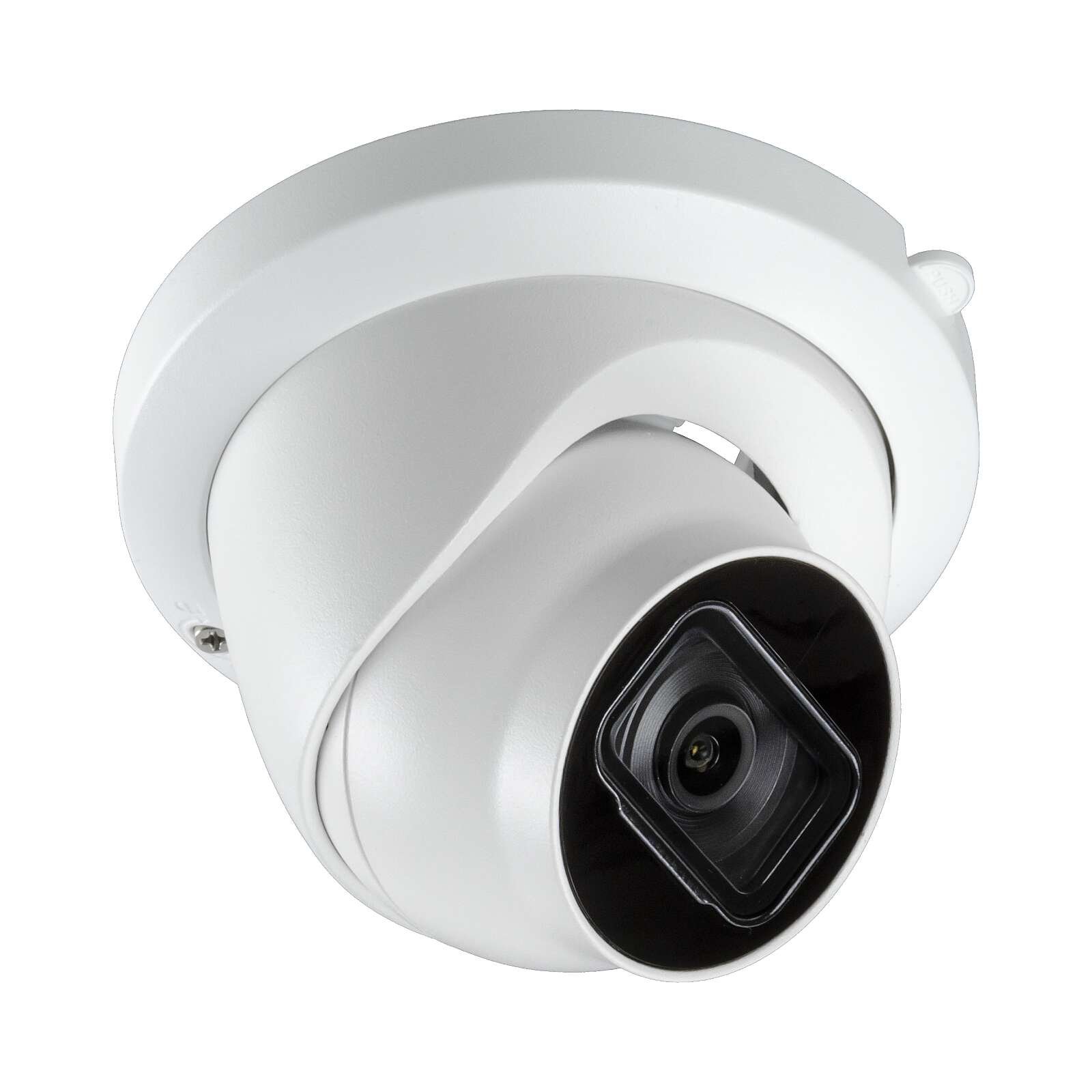

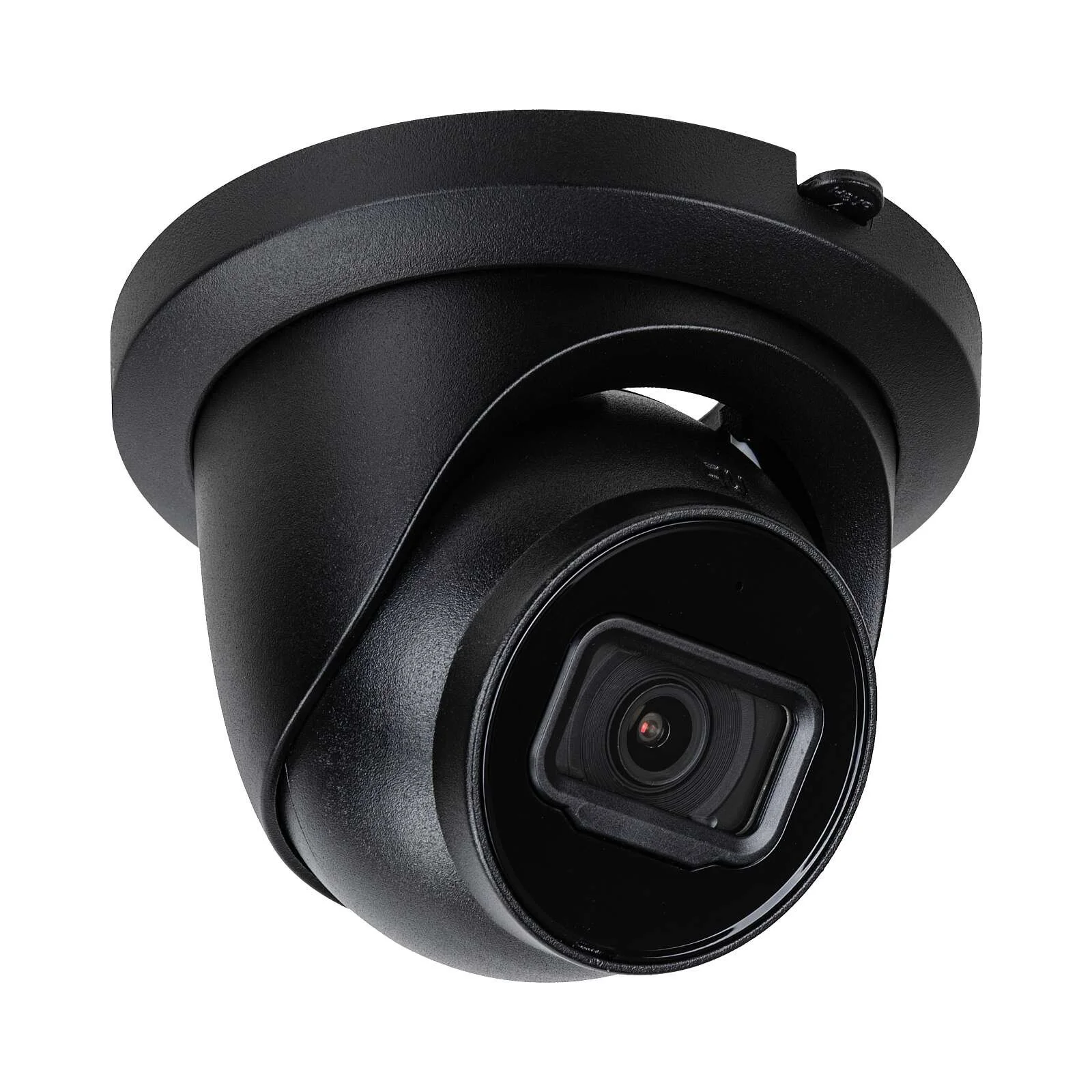

4MP H.265+ Turret Network Camera, Fixed Lens, WizSense 2 AI

$0.00

1/2.9″ 4Megapixel progressive CMOS • Smart H.265+ / H.264+ 2 streams • 4M(2688 × 1520)@20fps / 2560×1440@25/30fps • 120dB True WDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC • DMSS • 2.8mm fixed lens • Max IR LEDs Length 98.43ft(30m) • IP67, PoE

Color:
Quantity:
Add To Cart

1/2.9″ 4Megapixel progressive CMOS • Smart H.265+ / H.264+ 2 streams • 4M(2688 × 1520)@20fps / 2560×1440@25/30fps • 120dB True WDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC • DMSS • 2.8mm fixed lens • Max IR LEDs Length 98.43ft(30m) • IP67, PoE

1/2.9″ 4Megapixel progressive CMOS • Smart H.265+ / H.264+ 2 streams • 4M(2688 × 1520)@20fps / 2560×1440@25/30fps • 120dB True WDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC • DMSS • 2.8mm fixed lens • Max IR LEDs Length 98.43ft(30m) • IP67, PoE

Product Accordion Example

Product Information

System Overview

With advanced deep learning algorithm, WizSense 2 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.

SMD Plus

With intelligent algorithm, Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.

Smart H.265+ & Smart H.264+

With advanced scene-adaptive rate control algorithm, smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Perimeter Protection

With deep learning algorithm, Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion) are largely reduced.

WDR

With advanced Wide Dynamic Range (WDR) technology, network camera provides clear details in the environment of strong brightness contrast. The bright and dark area can get clear video even in high brightness environment or with backlight shadow.

Cyber Security

Network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera’s defense against external cyber threats and prevent malicious programs from comprising the device.

Protection (IP67, Wide Voltage)

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1m deep water for 30 minutes.
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

SPECIFICATIONS

Camera
Image Sensor 1/2.9" CMOS
Max. Resolution 2688 (H) × 1520 (V)
ROM 128 MB
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.008 lux@F1.6 (Color, 30 IRE)
0.0008 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio >56 dB
Illumination Distance 30 m (98.43 ft) (IR LED)
Illuminator On/Off Control Auto; manual
Illuminator Number 1 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–360° / Tilt: 0°–78° / Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8mm
Max. Aperture F1.6
Field of View 2.8mm: H: 95°; V: 52°; D: 114°
3.6mm: H: 78°; V: 41°; D: 94°
Iris Control Fixed
Close Focus Distance 2.8mm: 0.9m (2.95ft)
3.6mm: 1.6m (5.25ft)
DORI Distance (2.8mm) Detect: 63.6m (208.66ft)
Observe: 25.4m (83.33ft)
Recognize: 12.7m (41.67 ft)
Identify: 6.4 m (20.99ft)
DORI Distance (3.6mm) Detect: 85.4m (280.18ft)
Observe: 34.2m (112.20ft)
Recognize: 17.1m (56.10ft)
Identify: 8.5m (27.89ft)
Intelligence
IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.264H; H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
Video Frame Rate Main stream: 2688 × 1520@ (1–20 fps) / 2560 × 1440@ (1–25/30 fps)
Sub stream: 704 × 576@ (1–25 fps)/704 × 480@ (1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 2 streams
Resolution 4M (2688 × 1520 / 2560 × 1440)
3M (2304 × 1296)
1080p (1920 × 1080)
1.3M (1280 × 960)
720p (1280 × 720)
D1 (704 × 576 / 704 × 480)
VGA (640 × 480)
CIF (352 × 288 / 352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto; manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Image Rotation 0° / 90° / 180° / 270° (Support 90° / 270° with 2688 × 1520 resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; PCM; G.726
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnecton; IP conflict; illegal access; moton detecton; video tampering; tripwire; intrusion; SMD; voltage detecton; security excepton
Network
Network Port RJ-45 (10/100 Base-T)
SDK and API Yes
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP
Interoperability ONVIF (Profile S/Profile T); CGI; P2P; Milestone
User/Host 6 (Total bandwidth: 36 M)
Storage FTP; SFTP; Micro SD card (support max. 256 GB)
Browser IE / Chrome / Firefox
Management Software DSS; DMSS
Mobile Client iOS; Android
Cyber Security Configuration encryption / Trusted / execution / Digest / Security logs / WSSE / Account / lockout / syslog / Video encryption / 802.1x / IP/MAC / filtering / HTTPS / Trusted upgrade / Trusted boot / Generation and importing of X.509 certification
Certification
Certifications CE-LVD: EN 62368 ~ 1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
Power
Power Supply 12 VDC/PoE (802.3af)
Power Consumption Basic: 2.5 W (12 VDC); 3.3 W (PoE); Max. (ICR + H.265 + max. resolution + main stream + IR intensity + WDR + IVS): 4.2 W (12 VDC); 5.1 W (PoE)
Environment
Operating Temperature −40°C to +60°C (−40°F to +140°F)
Operating Humidity ≤95%
Storage Temperature −40°C to +60°C (−40°F to +140°F)
Protection IP67
Structure
Casing Material Inner core: Metal
Cover: Metal
Decoration ring: Plastic
Product Dimensions 99.1 mm × Φ121.9 mm (3.90" × Φ4.80")
Net Weight 0.48 kg (1.06 lb)
Gross Weight 0.68 kg (1.5 lb)
