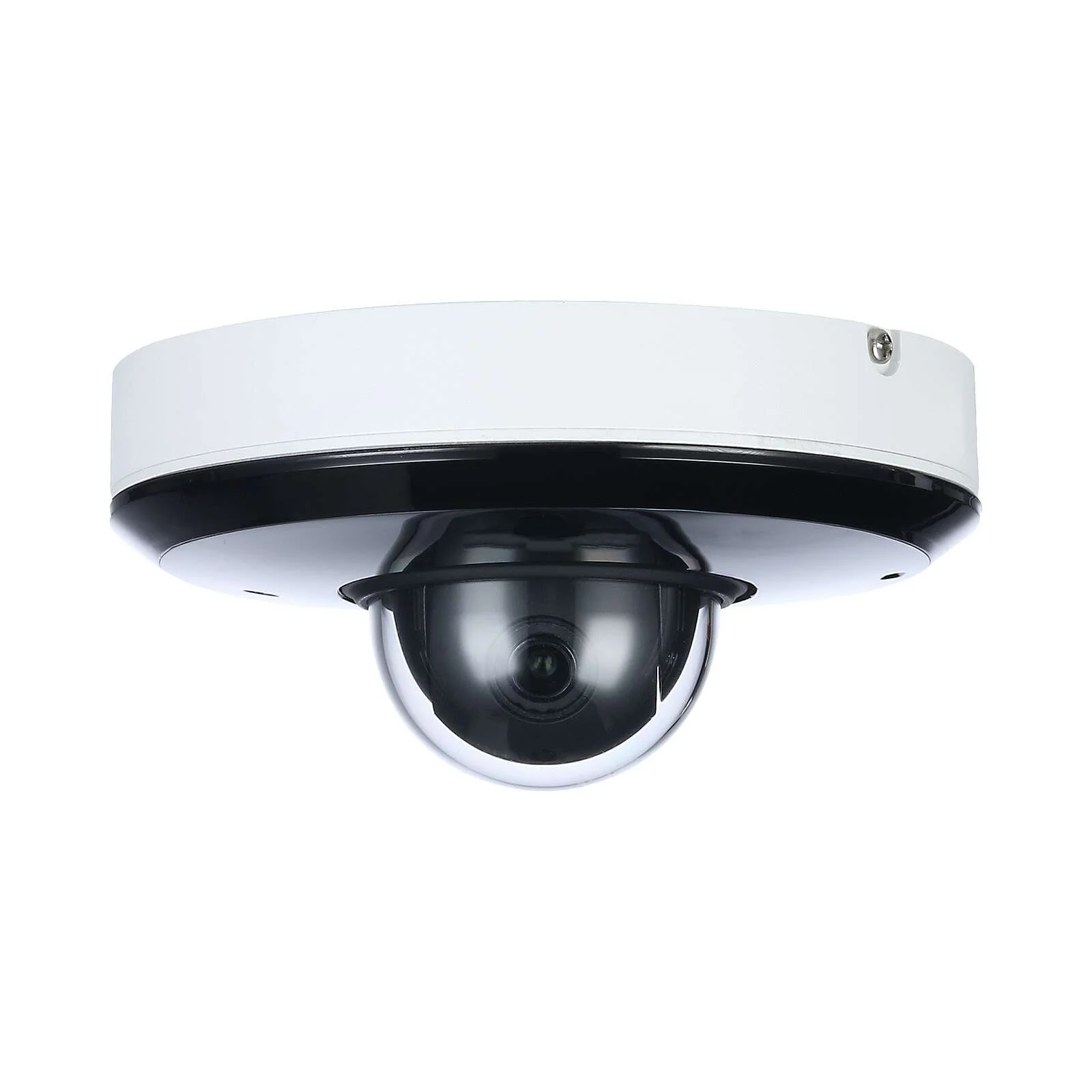

4MP Starlight Outdoor PTZ Camera, 4× Optical Zoom, SMD Plus, 50ft IR Range, True WDR, WizSense, AI Series, IVS, 12VDC/PoE

$0.00

1/2.8″ 4Megapixel STARVIS CMOS • Starlight technology • Max. 25/30fps@4MP • 4× optical zoom • Face Detection, People Counting, Perimeter Protection • IR distance up to 15m • SMD Plus • PoE • IP66, IK08

Quantity:
Add To Cart

1/2.8″ 4Megapixel STARVIS CMOS • Starlight technology • Max. 25/30fps@4MP • 4× optical zoom • Face Detection, People Counting, Perimeter Protection • IR distance up to 15m • SMD Plus • PoE • IP66, IK08

1/2.8″ 4Megapixel STARVIS CMOS • Starlight technology • Max. 25/30fps@4MP • 4× optical zoom • Face Detection, People Counting, Perimeter Protection • IR distance up to 15m • SMD Plus • PoE • IP66, IK08

Product Accordion Example

Product Information

WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on our advanced technologies, Wiz-Sense provides intelligent, simple and inclusive products and solutions.

System Overview

WizSense PTZ camera adopts advanced CNN deep learning algorithms to support perimeter protection with high accuracy. The camera is equipped with smooth control, high quality image, and good protection, meeting compact size demands of video surveillance applications.

People Counting

People Counting function uses advanced image processing technology to capture depth information from within images. The camera pairs this information with deep learning algorithms to analyze and detect human bodies and track target objects in real time. The camera provides statistics for separate individuals’ entrance and exit with up to 95% counting accuracy.

Starlight Technology

For challenging low-light applications, Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low light down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.

Environmental

Cameras operate in extreme temperature environments, rated for use in temperatures from -30°C to +60°C (−22°F to +140°F) with 95% humidity. Subjected to rigorous dust and water immersion tests and certified to the IP66 Ingress Protection rating makes it suitable for demanding outdoor applications.

Protection

The camera allows for ±15% input voltage tolerance, suitable for the most unstable conditions for outdoor applications. Its 6KV lightning rating provides effective protection for both the camera and its structure against lightning.

Wide Dynamic Range

The camera achieves vivid images, even in the most intense contrast lighting conditions, using industry-leading wide dynamic range (WDR) technology. For applications with both bright and low lighting conditions that change quickly, True WDR optimizes both the bright and dark areas of a scene at the same time to provide usable video.

H.265+

H.265+ is the optimized implementation of the H.265 CODEC that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. H.265+ technology reduces bit rate and storage requirements by up to 70% when compared to standard H.265 video compression.

FEATURES

  • 1/2.8" 4Megapixel STARVIS™ CMOS
  • Starlight technology
  • Max. 25/30 fps@4MP
  • 4&tiems; optical zoom
  • Face Detection, People Counting, Perimeter Protection
  • IR distance up to 50 ft (15 m)
  • SMD Plus
  • PoE
  • IP66, IK08

SPECIFICATIONS

Camera
Image Sensor 1/2.8" STARVIS™ CMOS
Pixel 4MP
Max. Resolution 2560 (H) × 1440 (V)
ROM 4GB
RAM 1GB
Electronic Shutter Speed 1 / 1 s ~ 1 / 30,000 s
Scanning System Progressive
Min. Illumination Color: 0.005Lux@F1.8
B/W: 0.0005Lux@F1.8
0Lux (IR light on)
Illumination Distance 15 m (49.21 ft)
Illuminator On/Off Control Zoom Prio / Manual / Smart IR
Illuminator Number 3
Lens
Focal Length 2.8 mm–12 mm
Max. Aperture F1.8–F2.7
Field of View H: 31.6°–96.9°
V: 17.8°–51.4°
D: 36.4°–116.2°
Optical Zoom 4x
Focus Control Auto / Semi-Auto / Manual
Close Focus Distance 0.2 m–0.5 m (0.66 ft–1.64 ft)
Iris Control Auto
DORI Distance Detect: 147.0 m (482.28 ft) / Observe: 58.8 m (192.91 ft) / Recognize: 29.4 m (96.46 ft) / Identify: 14.7 m (48.23 ft)
PTZ
Pan/Tilt Range Pan: 0°–355° Tilt: 5°–90°
Manual Control Speed Pan: 0.1°/s–70°/s Tilt: 0.1°/s–30°/s
Preset Speed Pan: 80°/s Tilt: 40°/s
Presets 300
Tour 8 (up to 32 presets per tour)
Speed Adjustment Support
Power-off Memory Support
Idle Motion Preset/Tour
General Intelligence
Event Trigger Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly
IVS Object Abandoned/Missing
Artificial Intelligence
People Counting Count people entering and exiting the area (crossing people counting); count people staying in the area (in- area people counting); display and export reports by day, week and month.
Perimeter Protection Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.
SMD Plus Support
Face Detection Support
Video
Compression H.265; H.264BaselineProfile; H.264MainProfile;H.264HighProfile; MJPEG (Sub Stream); H.265+; H.264+
Streaming Capability 3 streams
Resolution 4M (2560 × 1440); 3M (2048 × 1536); 1080P (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Frame Rate Main stream: 4M/3M (1–25/30fps), 1080P/1.3M/720P (1–25/30fps) Sub stream 1: D1/CIF (1–25/30fps) Sub stream 2: 720P (1–25/30fps), D1/CIF (1–25/30fps)
Bit Rate Control Variable Bit Rate/Constant Bit Rate
Bit Rate H.264/H.265/MJPEG: 3 kbps–20480 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Support
WDR 120 dB
HLC Support
White Balance Auto/Indoor/Outdoor/Track/Manual/Sodium lamp/ Natural light/Street lamp
Gain Control Auto/Manual
Noise Reduction 2D/3D
Motion Detection Support
Region of Interest (RoI) Support
Electronic Image Stabilization Support
Electronic Defog Support
Digital Zoom 16x
Flip 0°/180°
Privacy Masking Up to 24 areas, and up to 8 areas in the same view
Audio
Compression G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729; G.723
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
Interoperability ONVIF Profile S&G&T; CGI
Streaming Method Unicast/Multicast
User/Host 20
Storage FTP; Micro SD card (256G); P2P
Browser IE; Chrome; Firefox; Safari (no version restriction)
Management Software SmartPSS / DSS
Mobile Phone iOS/Android
Certification
Certifications CE: EN55032/EN55024/EN50130 ~ 4 FCC: Part15 subpartB, ANSI C63.4 ~ 2014 UL62368 ~ 1+CAN/CSA C22.2,No. 62368 ~ 1
Port
Audio Input 1(Line in; bare wire or built in Mic)
Audio Output 1
Power
Power Supply DC12V/1.5A±15% PoE (802.3af)
Power Consumption 3W / 8.5W (IR on)
Environment
Operating Temperature −30°C to +60°C (−22°F to 140°F)
Operating Humidity ≤95%
Protection IK08; IP66; TVS 6000V lightning proof; surge protection
Structure
Dimensions ∅128.0 mm × 65.4 mm (5.04" × 2.57")
Net Weight 0.485 kg (1.06 lb)
Gross Weight 0.7 kg (1.54 lb)
