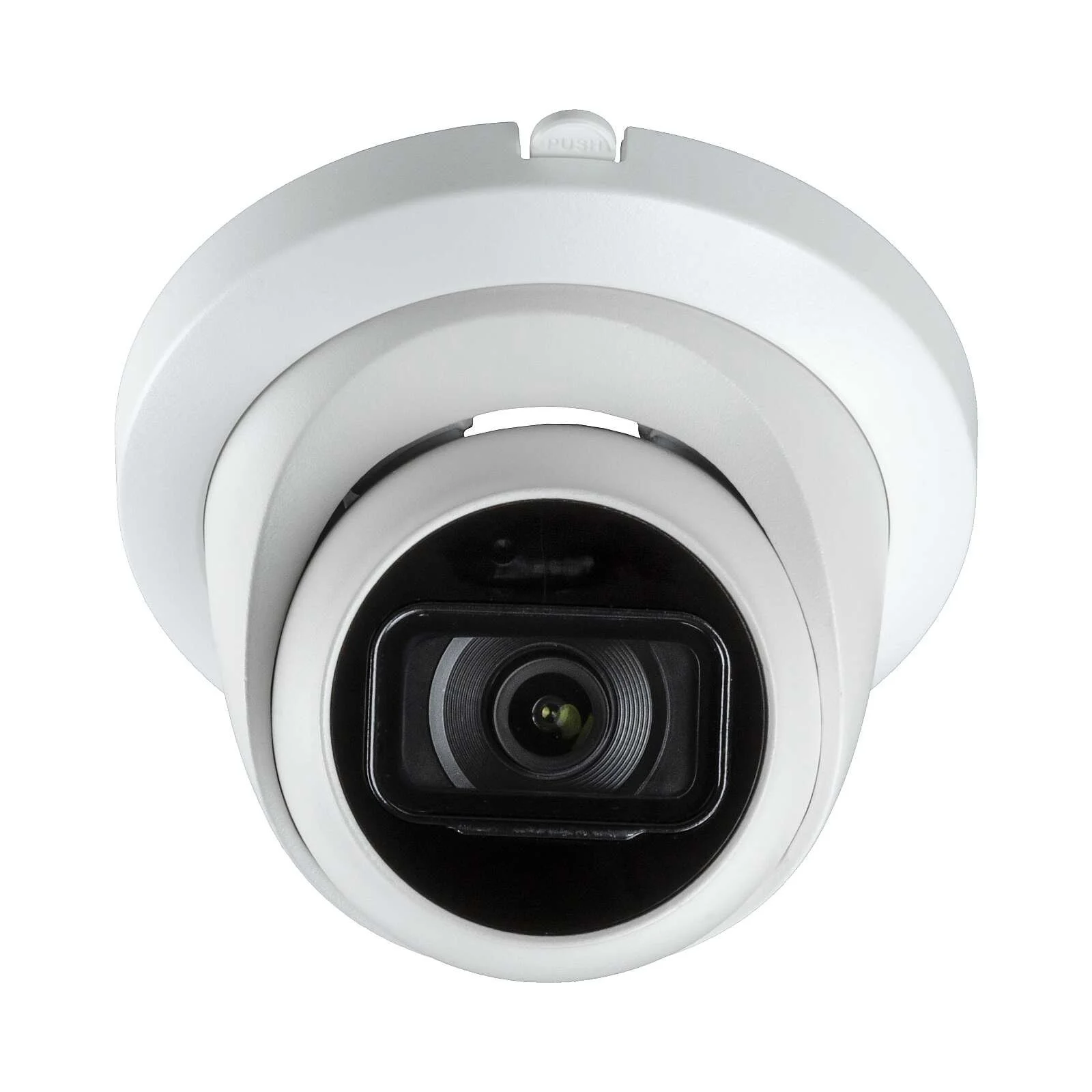

4MP H.265+ Turret Network Camera, Fixed Lens, WizSense 2 AI
1/2.9″ 4Megapixel progressive CMOS • Smart H.265+ / H.264+ 2 streams • 4M(2688 × 1520)@20fps / 2560×1440@25/30fps • 120dB True WDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC • DMSS • 2.8mm fixed lens • Max IR LEDs Length 98.43ft(30m) • IP67, PoE
1/2.9″ 4Megapixel progressive CMOS • Smart H.265+ / H.264+ 2 streams • 4M(2688 × 1520)@20fps / 2560×1440@25/30fps • 120dB True WDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC • DMSS • 2.8mm fixed lens • Max IR LEDs Length 98.43ft(30m) • IP67, PoE
1/2.9″ 4Megapixel progressive CMOS • Smart H.265+ / H.264+ 2 streams • 4M(2688 × 1520)@20fps / 2560×1440@25/30fps • 120dB True WDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC • DMSS • 2.8mm fixed lens • Max IR LEDs Length 98.43ft(30m) • IP67, PoE
Product Information
System Overview
With advanced deep learning algorithm, WizSense 2 Series network camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series camera provides a better image effect in the condition of low illuminance.
SMD Plus
With intelligent algorithm, Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Perimeter Protection
With deep learning algorithm, Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion) are largely reduced.
WDR
With advanced Wide Dynamic Range (WDR) technology, network camera provides clear details in the environment of strong brightness contrast. The bright and dark area can get clear video even in high brightness environment or with backlight shadow.
Cyber Security
Network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera’s defense against external cyber threats and prevent malicious programs from comprising the device.
Protection (IP67, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1m deep water for 30 minutes.
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
SPECIFICATIONS
Camera | |
---|---|
Image Sensor | 1/2.9" CMOS |
Max. Resolution | 2688 (H) × 1520 (V) |
ROM | 128 MB |
RAM | 128 MB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
Min. Illumination | 0.008 lux@F1.6 (Color, 30 IRE) 0.0008 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
S/N Ratio | >56 dB |
Illumination Distance | 30 m (98.43 ft) (IR LED) |
Illuminator On/Off Control | Auto; manual |
Illuminator Number | 1 (IR LED) |
Pan/Tilt/Rotation Range | Pan: 0°–360° / Tilt: 0°–78° / Rotation: 0°–360° | Lens |
Lens Type | Fixed-focal |
Lens Mount | M12 |
Focal Length | 2.8mm |
Max. Aperture | F1.6 |
Field of View | 2.8mm: H: 95°; V: 52°; D: 114° 3.6mm: H: 78°; V: 41°; D: 94° |
Iris Control | Fixed |
Close Focus Distance | 2.8mm: 0.9m (2.95ft) 3.6mm: 1.6m (5.25ft) |
DORI Distance (2.8mm) | Detect: 63.6m (208.66ft) Observe: 25.4m (83.33ft) Recognize: 12.7m (41.67 ft) Identify: 6.4 m (20.99ft) |
DORI Distance (3.6mm) | Detect: 85.4m (280.18ft) Observe: 34.2m (112.20ft) Recognize: 17.1m (56.10ft) Identify: 8.5m (27.89ft) |
Intelligence |
IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos | Video |
Video Compression | H.264H; H.265; H.264; H.264B; MJPEG (Only supported by the sub stream) |
Smart Codec | Smart H.265+; Smart H.264+ |
Video Frame Rate | Main stream: 2688 × 1520@ (1–20 fps) / 2560 × 1440@ (1–25/30 fps) Sub stream: 704 × 576@ (1–25 fps)/704 × 480@ (1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
Stream Capability | 2 streams |
Resolution | 4M (2688 × 1520 / 2560 × 1440) 3M (2304 × 1296) 1080p (1920 × 1080) 1.3M (1280 × 960) 720p (1280 × 720) D1 (704 × 576 / 704 × 480) VGA (640 × 480) CIF (352 × 288 / 352 × 240) |
Bit Rate Control | CBR/VBR |
Video Bit Rate | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps |
Day/Night | Auto (ICR)/Color/B/W |
BLC | Yes |
HLC | Yes |
WDR | 120 dB |
White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
Gain Control | Auto; manual |
Noise Reduction | 3D NR |
Motion Detection | OFF/ON (4 areas, rectangular) |
Region of Interest (RoI) | Yes (4 areas) |
Image Rotation | 0° / 90° / 180° / 270° (Support 90° / 270° with 2688 × 1520 resolution and lower) |
Mirror | Yes |
Privacy Masking | 4 areas | Audio |
Built-in MIC | Yes |
Audio Compression | G.711a; G.711Mu; PCM; G.726 | Alarm |
Alarm Event | No SD card; SD card full; SD card error; network disconnecton; IP conflict; illegal access; moton detecton; video tampering; tripwire; intrusion; SMD; voltage detecton; security excepton | Network |
Network Port | RJ-45 (10/100 Base-T) |
SDK and API | Yes |
Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP |
Interoperability | ONVIF (Profile S/Profile T); CGI; P2P; Milestone |
User/Host | 6 (Total bandwidth: 36 M) |
Storage | FTP; SFTP; Micro SD card (support max. 256 GB) |
Browser | IE / Chrome / Firefox |
Management Software | DSS; DMSS |
Mobile Client | iOS; Android |
Cyber Security | Configuration encryption / Trusted / execution / Digest / Security logs / WSSE / Account / lockout / syslog / Video encryption / 802.1x / IP/MAC / filtering / HTTPS / Trusted upgrade / Trusted boot / Generation and importing of X.509 certification | Certification |
Certifications | CE-LVD: EN 62368 ~ 1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B |
Power |
Power Supply | 12 VDC/PoE (802.3af) |
Power Consumption | Basic: 2.5 W (12 VDC); 3.3 W (PoE); Max. (ICR + H.265 + max. resolution + main stream + IR intensity + WDR + IVS): 4.2 W (12 VDC); 5.1 W (PoE) | Environment |
Operating Temperature | −40°C to +60°C (−40°F to +140°F) |
Operating Humidity | ≤95% |
Storage Temperature | −40°C to +60°C (−40°F to +140°F) |
Protection | IP67 | Structure |
Casing Material | Inner core: Metal Cover: Metal Decoration ring: Plastic |
Product Dimensions | 99.1 mm × Φ121.9 mm (3.90" × Φ4.80") |
Net Weight | 0.48 kg (1.06 lb) |
Gross Weight | 0.68 kg (1.5 lb) |
