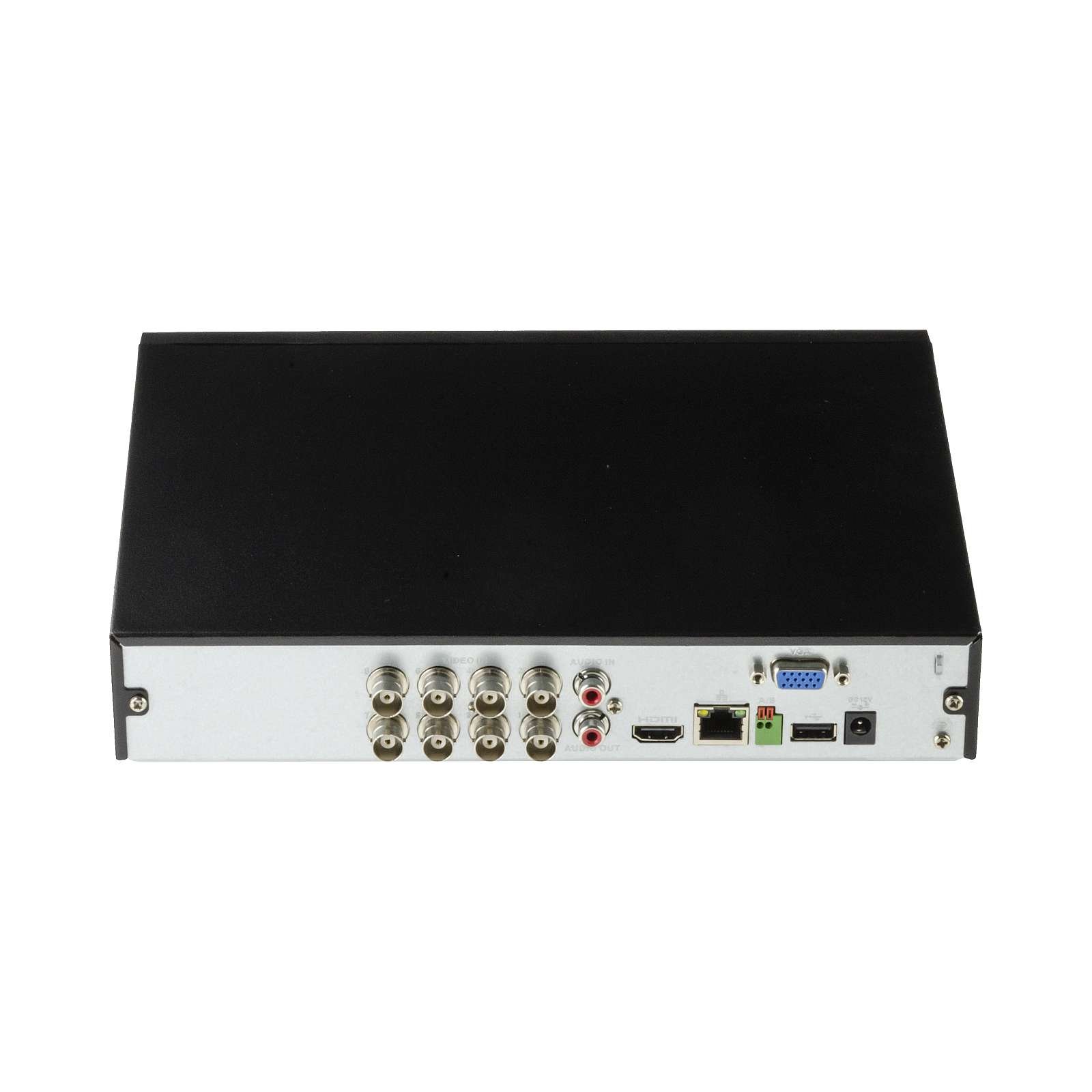

8+4 CH Penta-brid HD-Coax DVR System, H.265+, 4M-N TVI/CVI/AHD, 6MP IP, CVBS, 1U, 1 HDD Slot

Overview

With the surveillance operators pursuing to HD which further adds the storage and transmission cost, HDCVI H.265+/H.265 has been released to incredibly decrease the required bitrate while ensuring the video quality in realizing high resolution surveillance such as 4MP. The Lite Series is designed for high cost performance and quality. The range offers a great solution for users facing budget constraints who both require quality and performance. And with the adoption of Smart H.265+/H.265, the series improves encoding efficiency, saving on bandwidth/storage costs, and significantly reducing the Total Cost of Ownership (TCO).

FEATURES

• Smart H.265+: Smart Codec, H.265+ can reduce up to 90% bit rate and storage requirements compared with H.264 without having to invest in new cameras.
• HDCVI/AHD/TVI/CVBS Auto-detect: auto recognize the signal of front-camera without any setting. It makes operation more friendly and convenient.
• HD Camera Input: supports up to 4MP HDCVI camera and 6MP IP camera input.
• Coaxial Audio/Upgrade/Alarm: The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation.
• Long Distance Transmission: The HDCVI system supports long distance transmission over coaxial cable and UTP, max. 700m for 4MP, 800m for 1080P and 1200m for 720P.
• Smart Fan Design: The smart fan can automatically turn on or turn off according to the CPU temperature. This function can effectively reduce the fan noise to provide a better user experience.
• Intelligent Video System (IVS): With built-in intelligent video analytics, the DVR has the ability to detect and analyze moving objects for improved video surveillance. The DVR provides optional standard intelligence at the edge allowing detection of multiple object behaviors such as abandoned or missing objects. IVS also supports Tripwire analytics, allowing the camera to detect when a pre-determined line has been crossed.
• Face Detection: It is a typical technology being used in a variety of applications for searching or identification of individuals.
• Smart Search: This function helps you get more motion detect video during a short time through drawing a region when playback. It is very useful when an emergency occurs.
