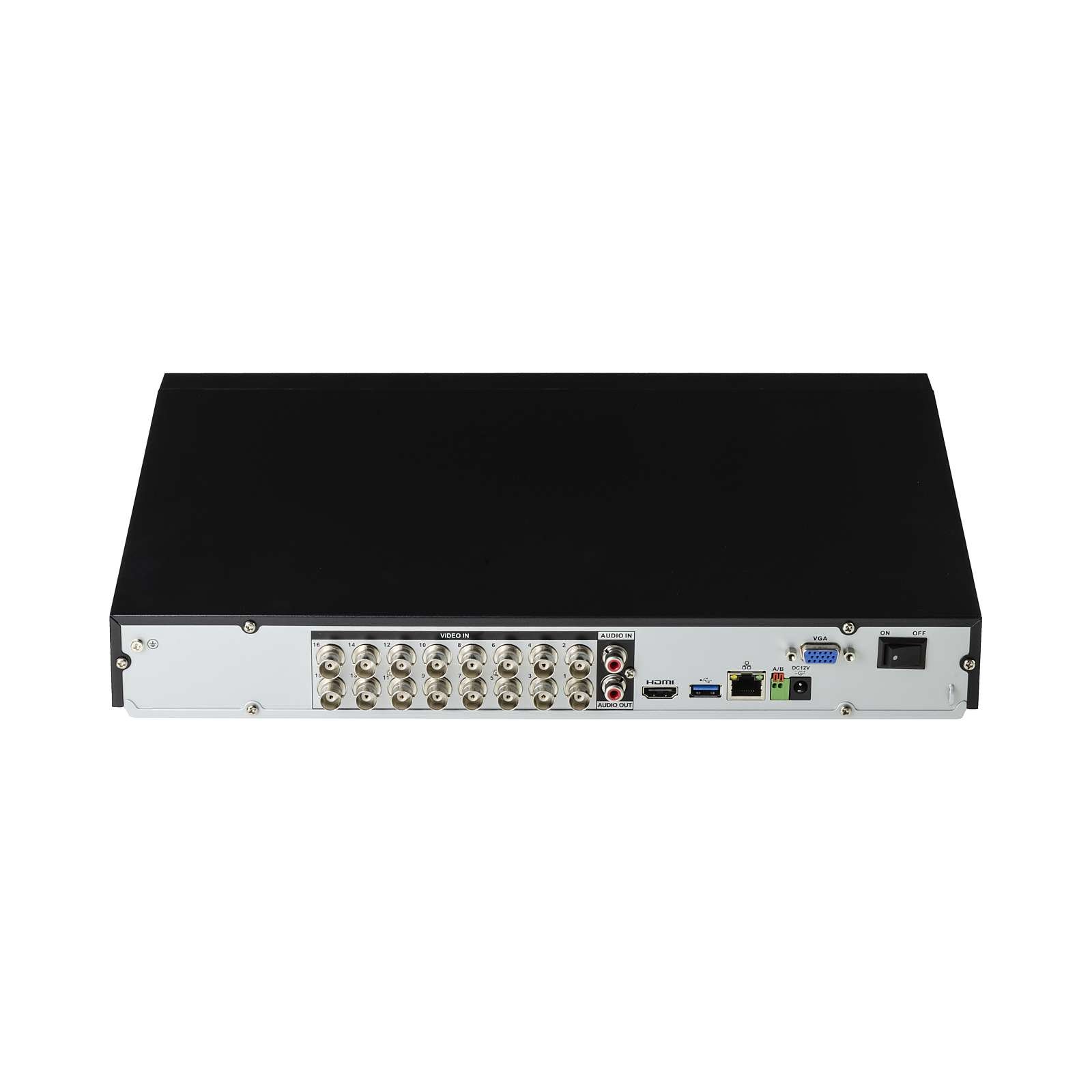

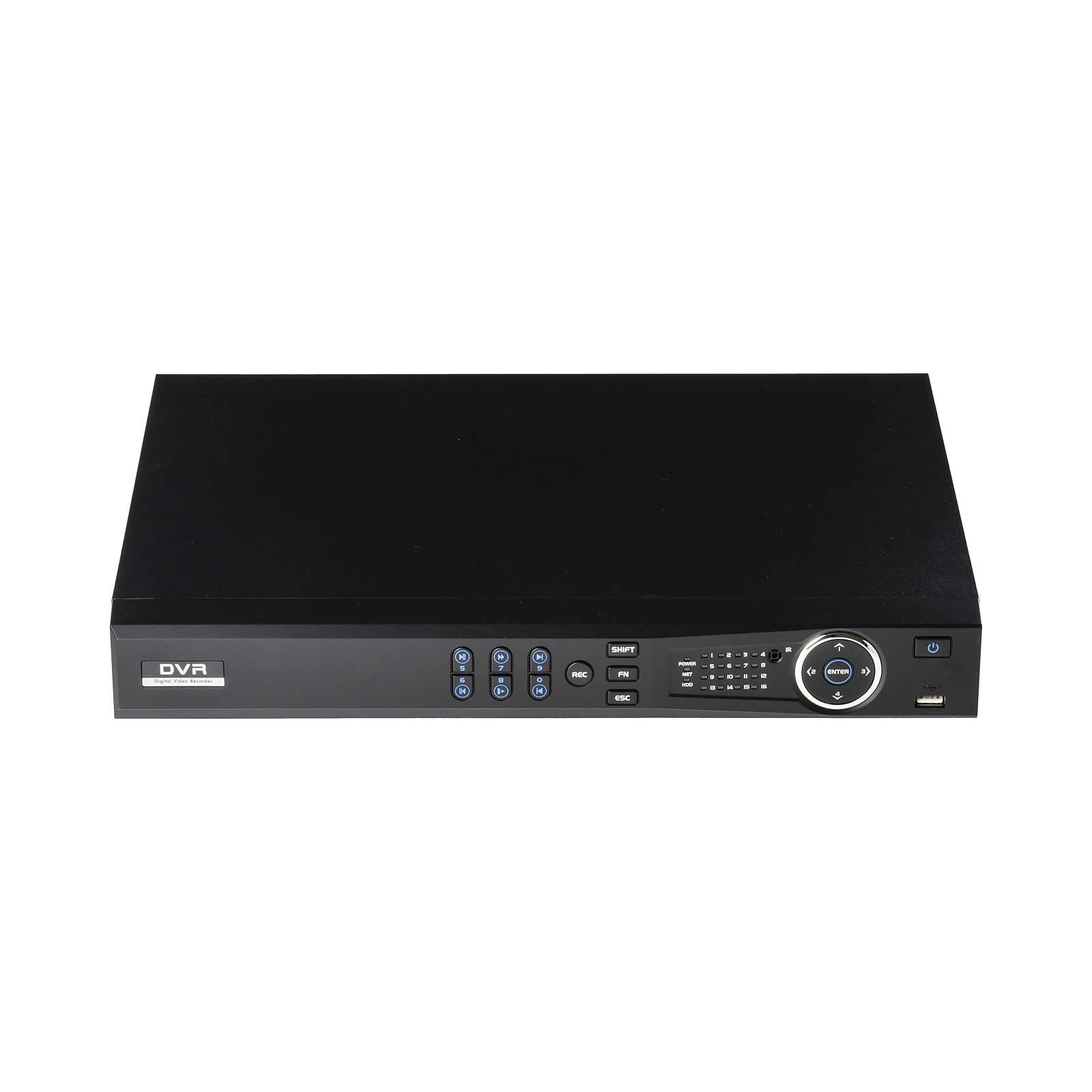

8MP 16 Analog + 16 IP CH Hybrid DVR System, WizSense, 2 HDD, 1U
$0.00
Penta-brid (CVI / TVI / AHD / CVBS) • H.265+ / H.265 dual-stream • Max 128 Mbps incoming bandwidth • Up to 2 CH Perimeter Protection • Up to 16 CH SMD Plus • Up to 2 CH Human Face Recognition
Quantity:
Penta-brid (CVI / TVI / AHD / CVBS) • H.265+ / H.265 dual-stream • Max 128 Mbps incoming bandwidth • Up to 2 CH Perimeter Protection • Up to 16 CH SMD Plus • Up to 2 CH Human Face Recognition
Penta-brid (CVI / TVI / AHD / CVBS) • H.265+ / H.265 dual-stream • Max 128 Mbps incoming bandwidth • Up to 2 CH Perimeter Protection • Up to 16 CH SMD Plus • Up to 2 CH Human Face Recognition
Product Information
Overview
This series utilizes max.full-channel SMD Plus to provide customers with an AI upgrade / reducing false alarms and human surveillance costs. It is ideal for those seeking accurate human/vehicle alarms to enhance security in both indoor and outdoor facilities.
Face Recognition
Face Recognition extracts facial features and compares them to a database to identify individuals.
Perimeter Protection
Improves alarm accuracy by automatically filtering out false alarms caused by animals / rustling leaves / bright lights / etc. / and enabling secondary recognition for targets.
SMD Plus
Smart Motion Detection technology intelligently categorizes motion-triggering targets and filters out non-concerned targets / improving alarm accuracy.
AI Coding
AI coding reduces over 50% bit rate and storage requirements compared to H.265/H.264 / while preserving decoding compatibility and providing clear details of humans and vehicles.
Smart H.265+
Smart H.265+ is a superior version of the H.265 codec that uses various strategies to deliver high-quality videos while reducing network load. It reduces bit rate and storage requirements by up to 70% compared to standard H.265.
HDCVI / AHD / TVI / CVBS Auto-detect
The DVR automatically recognizes the signal from the front-camera without any manual configuration / making it more user-friendly and convenient to operate.
Coaxial Audio/Upgrade/Alarm
The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation.
Long-distance Transmission
The HDCVI system supports long-distance transmission over coaxial cable and UTP / with a maximum range of 2296 ft (700m) for 4K/4MP / 2624 ft (800m) for 1080P / and 3937 ft (1200m) for 720P.
AI Search
AI search enables operators to quickly locate video footage by searching for targets and events based on specific attributes / making investigations more efficient and effective.
FEATURES
- H.265+/H.265 dual-stream video compression
- Supports Full-channel AI-Coding
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 32 channels IP camera inputs / each channel up to 8MP / Max 128 Mbps incoming bandwidth
- Up to 2 channels video stream ( analog channel ) Perimeter Protection
- Up to 16 channels video stream ( analog channel ) SMD Plus
- Up to 2 channels video stream (analog channel ) human face recognition
- IoT & POS functionalities
- Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.
SPECIFICATIONS
| System | |
|---|---|
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web / Local GUI | Perimeter Protection |
| Perimeter Performance AI by Recorder (Number of Channels) | 2 channels / 10 IVS rules for each channel | Face Detection |
| Face Attributes | Gender / age group / glasses / expressions / face mask / beard |
| Face Detection Performance of AI by Recorder (Number of Channels) | 2 channels (up to 12 face images/s) | Face Recognition |
| Face Database Capacity | Up to 10 face databases with 20 / 000 face images in total. Name / gender / birthday / address / certificate type / cerificate No. / countries& / regions and state can be added to each face picture |
| Face Recognition Performance of AI by Recorder (Number of Channels) | 2 channels | SMD Plus |
| SMD Plus by Recorder | 16 channels: Secondary filtering for human and motor vehicle SMD Plus / reducing false alarms caused by leaves / rain and lighting condition change | Audio and Video |
| Analog Camera Input | 16 channel BNC: adaptive access by default / HDCVI / AHD / TVI and CVBS access can be configured. |
| Camera Input | CVI: 4K / 6 MP / 5 MP / 4 MP / 1080P@25/30 fps / 720P@50/60 fps / 720P@25/30 fps TVI: 4K / 5 MP / 4 MP / 3 MP / 1080P@25/30 fps / 720P@25/30 fps AHD: 4K / 5 MP / 4 MP / 3 MP / 1080P@25/30 fps / 720P@25/30 fps |
| IP Camera Input | Up to 32 channels of IPC access: 16 IP channels by default + 16 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps / recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps |
| Encoding Capacity | Main stream: All channel 4K@(1 ~ 7fps) / 6MP@(1 ~ 10fps) / 5MP@(1 ~ 12fps) / 4K-N/4MP/3MP@(1 ~ 15fps) / 4M-N/1080P/720P/960H/D1/CIF(1fps–25/30fps) / Sub stream: 960H@(1fps–15fps) / D1/CIF@(1 fps–25/30fps)) |
| Dual-stream | Yes |
| Video Frame Rate | NTSC: 1 fps–30 fps PAL: 1 fps–25 fps |
| Video Bit Rate | 32 kbps–6144 kbps per channel |
| Audio Sampling | 8 kHz / 16 bit |
| Audio Bit Rate | 64 kbps |
| Bit Rate Type | Video stream and composite stream |
| Video Output | 1 HDMI / 1 VGA HDMI: 3840 × 2160 / 1920 × 1080 / 1280 × 1024 / 1280 × 720 VGA: 1920 × 1080 / 1280 × 1024 / 1280 × 720 |
| Multi-screen Display | When IP extension mode not enabled: 1 / 4 / 8 / 9 / 16 When IP extension mode enabled: 1 / 4 / 8 / 9 / 16 / 25 / 36 |
| Third-party Camera Access | Onvif / RTSP / Panasonic / Sony / Axis / Arecont / Pelco / Canon / Samsung | Compression Standard |
| Video Compression | AI Coding / H.265+ / H.265 / H.264+ / H.264 |
| Audio Compression | G.711A / G.711u / PCM | Network |
| Network Protocol | HTTP / HTTPS / TCP / IP / IPv4 / RTSP / UDP / SMTP / NTP / DHCP / DNS / DDNS / P2P |
| Mobile Phone Access | iOS / Android |
| Interoperability | ONVIF 16.12 / CGI |
| Browser | Chrome / IE9 or above / Firefox |
| Network Mode | Single-address mode | Recording Playback |
| Record Mode | General / motion detection / intelligent / alarm / POS |
| Recording Playback | 1 / 4 / 9 / 16 |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) | Storage |
| Disk Group | Yes | Alarm |
| General Alarm | Motion detection / video loss / tampering / and local alarm |
| Anomaly Alarm | No disk / storage error / low space / offline / IP conflict / MAC conflict |
| Intelligent Alarm | Face detection / face recognition / perimeter protection |
| Alarm Linkage | Record / snapshot (panoramic) / IPC external alarm output / access controller / voice prompt / buzzer / log / preset / email | Ports |
| Audio Input | 1-channel RCA (external) 16-channel BNC (coaxial audio) |
| Audio Output | 1, RCA |
| Two-way Talk | Yes (share the same audio input with the first channel) |
| HDD Interface | 2 SATA ports,up to 16 TB for a single HDD, the maximum HDD capacity varies with environment temperature |
| RS-485 | 1 |
| USB | 2 (1 front USB 2.0 port, 1 rear USB 3.0 port) |
| HDMI | 1 |
| VGA | 1 |
| Network Port | 1 (10/100/1000 Mbps Ethernet port, RJ-45) | General |
| Power Supply | 12 VDC, 5 A |
| Power Consumption | Lower than 15 W |
| Net Weight | 3.90 lb (1.77 kg) |
| Gross Weight | 6.48 lb (2.94 kg) |
| Product Dimensions | 1U, 14.76" × 11.38" × 2.09" (375.0 mm × 289.0 mm × 53.0 mm) (W × D × H) |
| Packaging Dimensions | 17.05" × 5.55" × 14.41" (433.0 mm × 141.0 mm × 366.0 mm) (W × D × H) |
| Operating Temperature | 14°F to +131°F (−10°C to +55°C) |
| Operating Humidity | 10%–90% (RH) |
| Installation | Desktop |
| Certifications | CE: CE-LVD: EN 60950 ~ 1/IEC 60950 ~ 1 CE-EMC: EN 61000 ~ 3-2, EN 61000 ~ 3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B |
