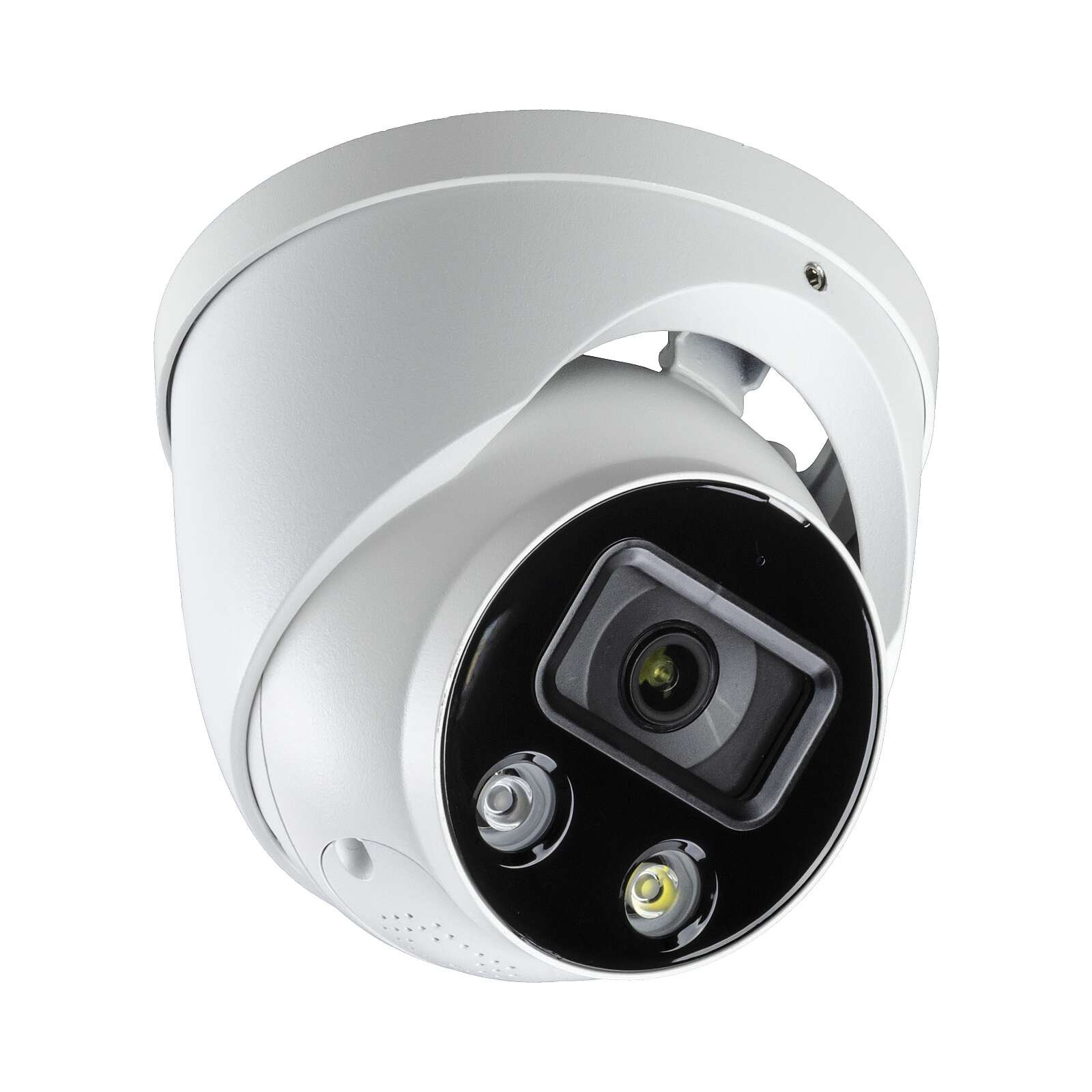

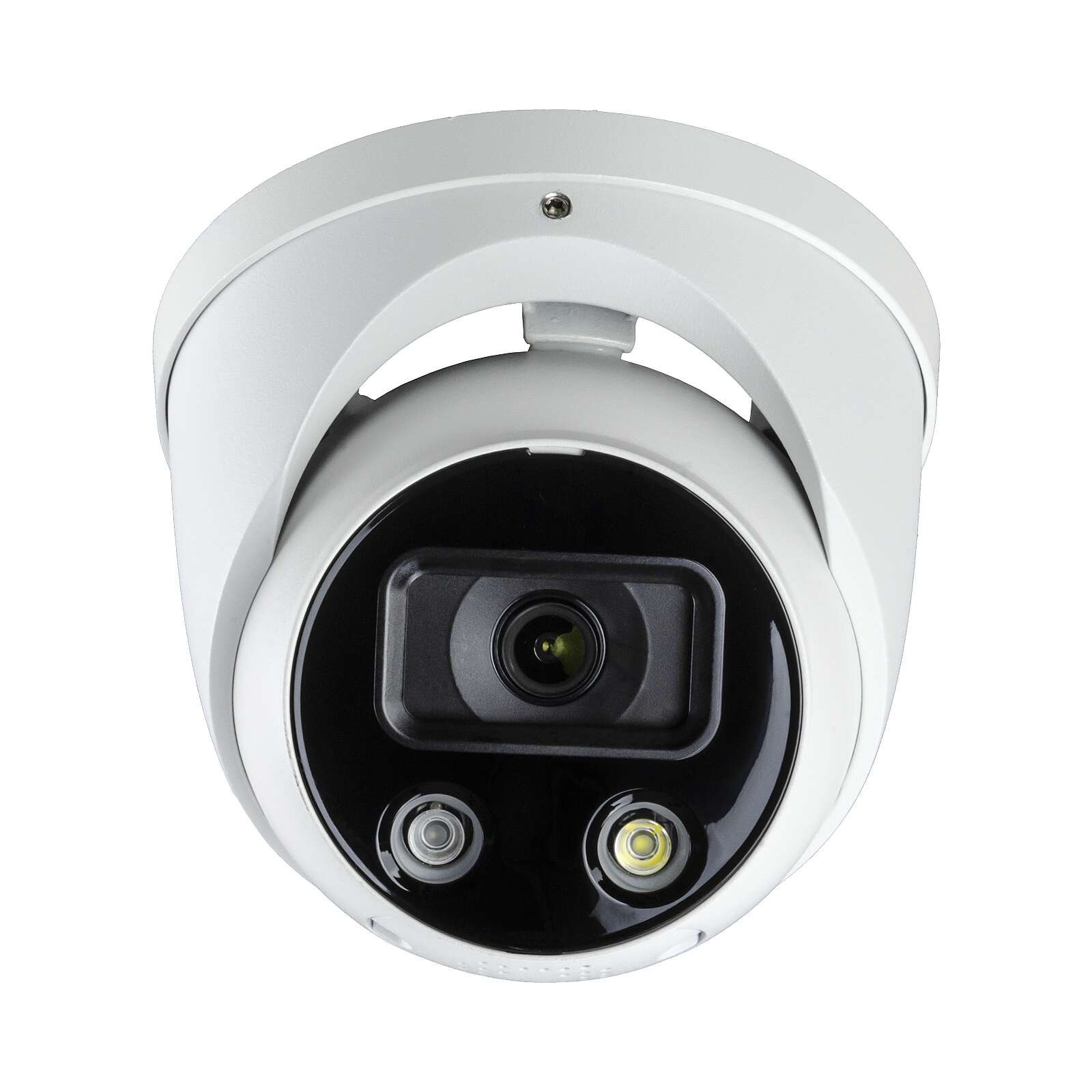

8MP (4K) Starlight Turret Network Camera, Fixed Lens, Siren and Light Active Deterrence, IR + White LED, WizMind, AI Series, True WDR (120dB)

WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Eyemax’s advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.

Series Overview

With advanced deep learning algorithm, WizSense 3 Series net-work camera supports intelligent functions, such as perimeter protection and smart motion detection. With starlight technology, this series cam-era provides a better image effect in the condition of low illuminance.

SMD Plus

With intelligent algorithm, Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.

Smart H.265+ & Smart H.264+

With advanced scene-adaptive rate control algorithm, smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.

Starlight

Starlight technology mainly applies to the environment of low illumination, and it can provide clear colorful video. Even in the environment of min. illumination, the technology can guarantee the good image effect.

Siren and Light Active Deterrence

Siren and light active deterrence network camera supports light alarm and voice alarm when perimeter event occurs, to realize the deterrence and effective intervention. The camera is built in multiple voices for selection, and supports customized voice importing.

Perimeter Protection

With deep learning algorithm, Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detec-tion based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.

Protection (IP67, wide voltage)

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

FEATURES

• 8MP, 1/2.8" CMOS image sensor, low illuminance, high image definition
• Outputs max. 8MP (3840 × 2160) @20 fps (AI function enabled by default) and supports 8MP (3840 × 2160) @25/30 fps (when AI function is disabled)
• H.265 codec, high compression rate, low bit rate
• Built-in IR LED, max. IR distance: 30 m
• ROI, SMART H.264+/H.265+, flexible coding, applicable to various band width and storage environments
• Image correction, rotation mode, WDR, 3D NR, HLC, BLC, digital water marking, applicable to various monitoring scenes
• Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
• Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, net work disconnection, IP conflict, illegal access, and voltage detection
• Supports sound and light alarm linkage. When an alarm is triggered, the camera links sound alarm and light flashing
• Supports one-tap disarming. You can disarm the events of alarm output, sending email, audio, and light in the configured period
• Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic and speaker
• 12V DC/PoE power supply
• IP67 protection
• SMD Plus

SPECIFICATIONS
