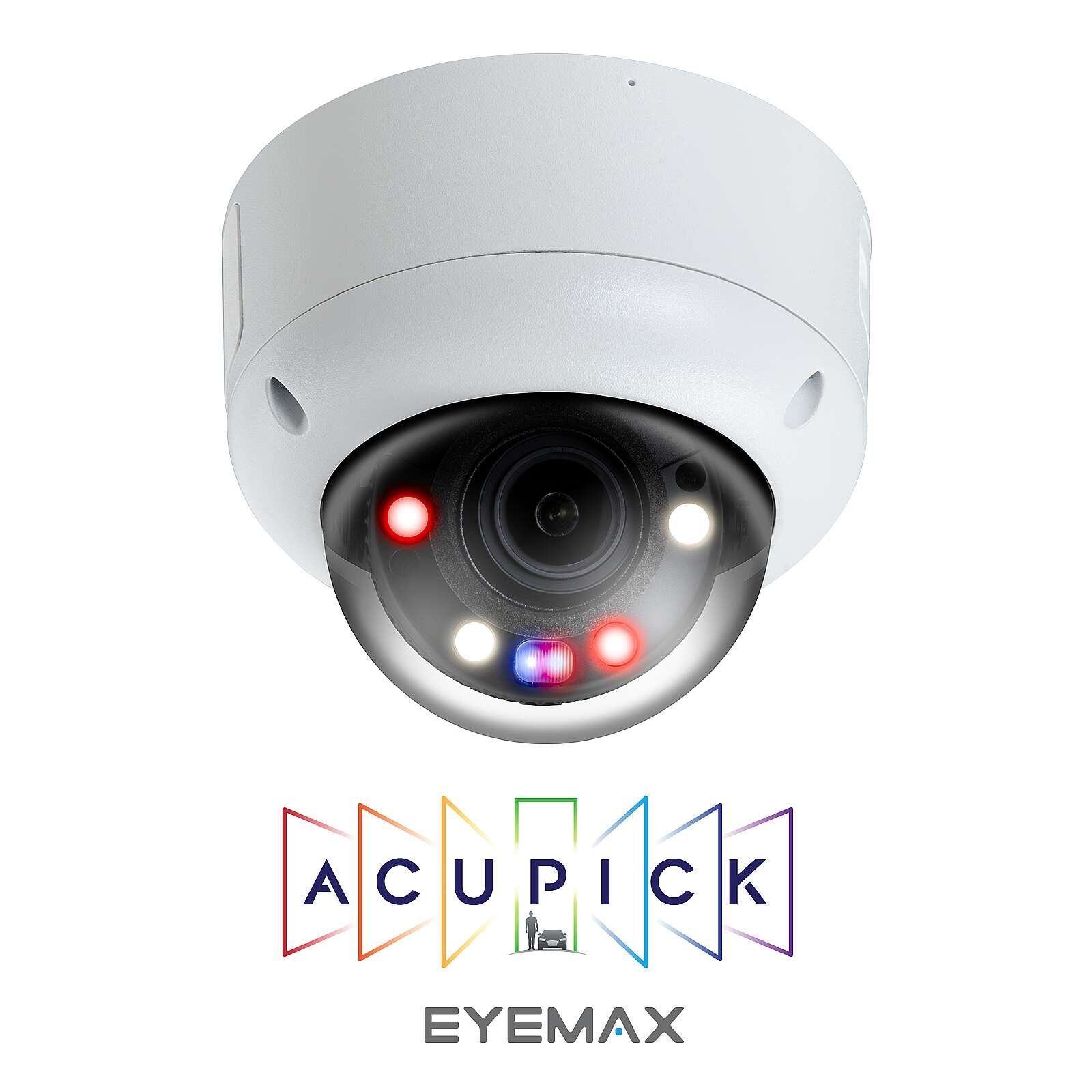

AcuPick 8MP IP Dome Camera, Smart Dual Light, Active Deterrence
AcuPick • WizSense AI with SMD 4.0 • 2.7-13.5mm Motorized Lens • 8MP(4K) • 3 Streams • 120dB WDR • Smart H.265+ / H.264+ • 164ft (50m) IR Range • 131ft (40m) White Light Range • Smart Dual Light • Built-in Microphone & Speaker • Siren and Light Active Deterrence w/ Red & Blue Light • 12VDC & PoE • IP67 Weather-Resistant • IK10 Vandal-Resistant
AcuPick • WizSense AI with SMD 4.0 • 2.7-13.5mm Motorized Lens • 8MP(4K) • 3 Streams • 120dB WDR • Smart H.265+ / H.264+ • 164ft (50m) IR Range • 131ft (40m) White Light Range • Smart Dual Light • Built-in Microphone & Speaker • Siren and Light Active Deterrence w/ Red & Blue Light • 12VDC & PoE • IP67 Weather-Resistant • IK10 Vandal-Resistant
AcuPick • WizSense AI with SMD 4.0 • 2.7-13.5mm Motorized Lens • 8MP(4K) • 3 Streams • 120dB WDR • Smart H.265+ / H.264+ • 164ft (50m) IR Range • 131ft (40m) White Light Range • Smart Dual Light • Built-in Microphone & Speaker • Siren and Light Active Deterrence w/ Red & Blue Light • 12VDC & PoE • IP67 Weather-Resistant • IK10 Vandal-Resistant
Product Information
Siren and Light Active Deterrence
The siren and light active deterrence network camera activates alarms and voice alerts during perimeter events for effective deterrence and intervention. It includes multiple voice options and supports custom voice imports.
SMD 4.0
Smart Motion Detection uses intelligent algorithms to classify targets and filter out non-targets like animals, reducing false alarms.
Smart Dual Light
Smart Dual Light technology uses algorithms to detect targets. At night, IR is used until a target enters the monitoring area, activating white light for full-color video of key events. Once the target leaves, the white light turns off, reducing light pollution.
One-tap Disarming
The One-tap Disarming function allows easy event linkage control via a mobile app, enabling users to disable or restore it for various scenarios.
Cyber Security
Network cameras use advanced security technologies like authentication, access control, trusted protection, and encrypted transmission and storage to defend against cyber threats and prevent malicious attacks.
IP67 Weather-Resistant
The camera is dust-proof and can operate normally after being submerged in 1 meter of water for 30 minutes, following rigorous testing.
IK10 Vandal-Resistant
The enclosure withstands multiple impacts from a 5 kg hammer dropped from 100 cm (50J energy). With a wide voltage tolerance of ±30%, it’s ideal for outdoor environments with unstable power.
FEATURES
- 8-MP 1/2.8″ CMOS image sensor, low luminance, and high definition image.
- Outputs max. 8 MP (3840 × 2160 )@25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m.
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
- 12 VDC/PoE power supply.
- IP67 and IK10 protection.
- Sound and light alarm (red and blue lights).
- SMD 4.0.
- Supports AI SSA and one-tap arming and disarming.
- SMD area can be set in warm light areas that support triggering alarms.
SPECIFICATIONS
| Camera | |
|---|---|
| Image Sensor | 1 / 2.8" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 256 MB |
| RAM | 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto / Manual 1 / 3 s–1 / 100,000 s |
| Min. Illumination | 0.004 lux@F1.0 (Color, 30 IRE) 0.0004 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S / N Ratio | >56 dB |
| Illumination Distance | Up to 50 m (164.64 ft) (IR) Up to 40 m (131.23 ft) (Warm light) |
| Illuminator On / Off Control | Auto;Manual |
| Illuminator Number | 2 (IR LED); 2 (Warm light) |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
Lens |
| Lens Type | Motorized vari-focal |
| Lens Mount | φ16 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.0 |
| Field of View | H: 108°–34° V: 56°–19° D: 130°–39° |
| Iris Control | Fixed |
| Close Focus Distance | 1.5 m (4.92 ft) | DORI Distance |
| Detect | W: 89.9 m (294.95 ft) T: 257.4 m (844.49 ft) |
| Observe | W: 36.0 m (118.11 ft) T: 103.0 m (337.93 ft) |
| Recognize | W: 18.0 m (59.06 ft) T: 51.5 m (168.96 ft) |
| Identify | W: 9.0 m (29.53 ft) T: 25.7 m (84.32 ft) |
| *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676 ~ 4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual / project design tool. | Intelligence |
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.;(Some Models) |
| AI SSA | Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos | Video |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Video Frame Rate | Main stream: 3840 × 2160@(1–25/30 fps) Sub stream: 704 × 576@(1 fps–25 fps) / 704 × 480@ (1–30 fps) Third stream: 1920 × 1080@(1–25 / 30 fps *The values above are the max. frame rates of each stream; for multple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 3 streams |
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR / VBR / ABR |
| Video Bit Rate | H.264:3 kbps–16384 kbps H.265:3 kbps–16384 kbps |
| Day / Night | Auto(ICR) / Color / B / W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto / Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF / ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Smart Illumination | Yes |
| Defog | Yes |
| Image Rotation | 0° / 90° / 180° / 270° (Support 90° / 270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas | Audio |
| Built-in MIC | Yes, built-in dual Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 | Alarm |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection;defocus detection; external alarm; SMD; security exception | Network |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P |
| Interoperability | ONVIF (Profile S; Profile G; Profile T); CGI |
| User / Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 512 GB); NAS |
| Browser | IE: IE9 / 11 Chrome Firefox |
| Management Software | SmartPSS Lite; DSS; DMSS |
| Mobile Client | iOS;Android |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP / MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade | Certification |
| Certifications | CE-LVD: EN 62368 ~ 1; CE-EMC: Electromagnetc Compatbility Directve 2014 / 30 / EU FCC: 47 CFR FCC Part 15, Subpart B |
Port |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: wet contact, 5 mA 3–5 VDC |
| Alarm Output | 1 channel out: wet contact, 300 mA 12 VDC | Power |
| Power Supply | 12 VDC / PoE (802.3af) |
| Power Consumption | Basic: 4.5 W (12 VDC); 5.8 W (PoE) Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.9 W (12 VDC); 10.3 W (PoE) |
Environment |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67; IK10 | Structure |
| Casing Material | Metal |
| Product Dimensions | 105 mm × Φ126.0 mm (4.13" × Φ4.96") |
| Net Weight | 0.73 kg (1.61 lb) |
| Gross Weight | 0.9 kg (1.98 lb) |
