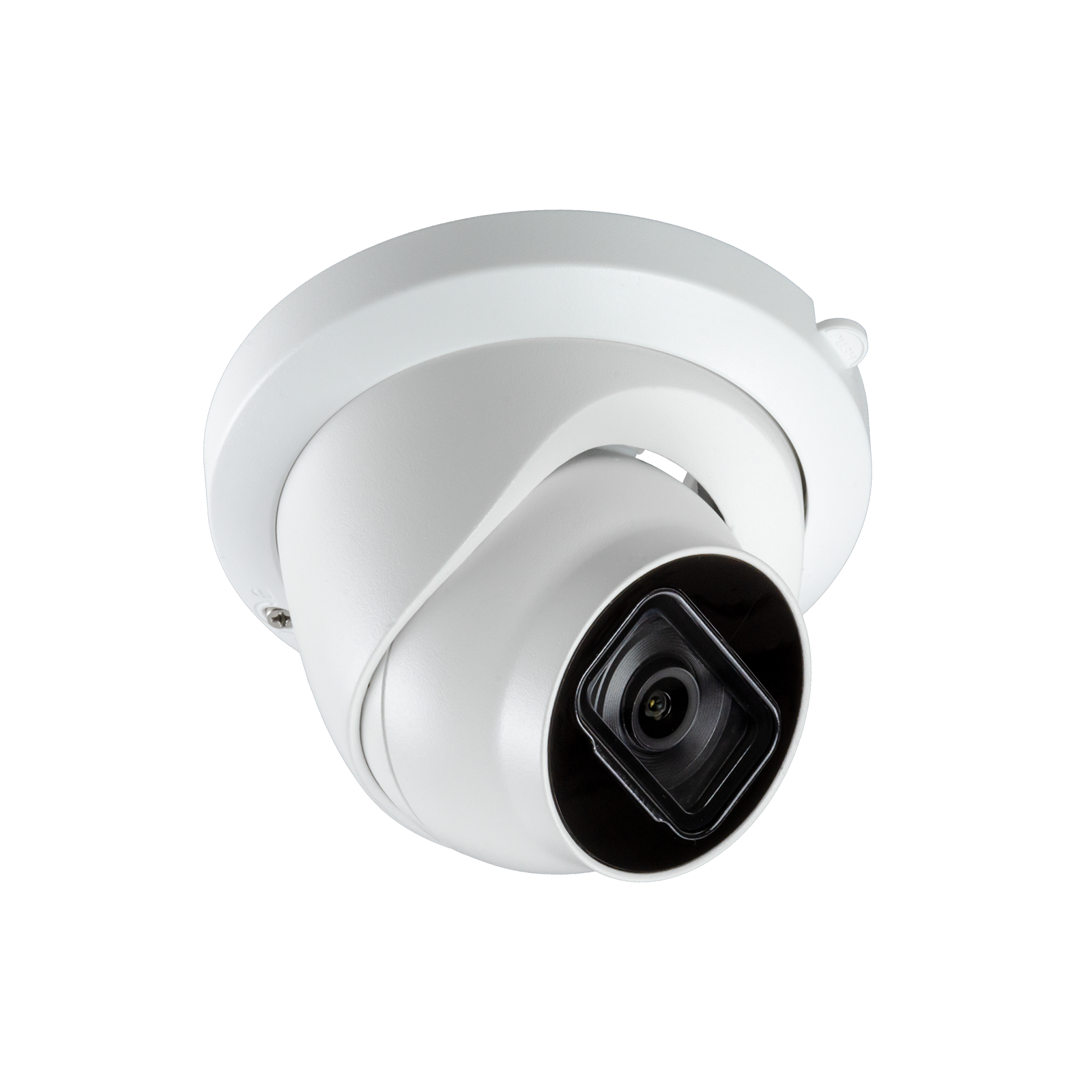

8MP DeepLight IR Turret Network Camera, WizMind S AI, AcuPick, Fixed Lens
$0.00
160ft IR Distance • AI-Powered Image • SMD 3.0 • Smart H.265+ / H.264+ • Built-in Mic • 12VCD / PoE, ePoE • IP67
Quantity:
160ft IR Distance • AI-Powered Image • SMD 3.0 • Smart H.265+ / H.264+ • Built-in Mic • 12VCD / PoE, ePoE • IP67
160ft IR Distance • AI-Powered Image • SMD 3.0 • Smart H.265+ / H.264+ • Built-in Mic • 12VCD / PoE, ePoE • IP67
Product Information
Overview
Empowered by deep learning algorithms, the WizMind S Series network camera delivers enhanced audio and video analysis accuracy. It features intelligent capabilities such as video metadata, smart sound detection, face detection, perimeter protection, people counting, and more. Additionally, it utilizes advanced AI-Powered Image processing for outstanding image quality.
AI-Powered Image
With AI ISP technology, the camera is able to easily adapt to scenes, producing high quality images that reveal the fine details of targets.
Perimeter Protection
Empowered by deep learning algorithms, the Perimeter Protection technology accurately identifies humans and vehicles within restricted areas. This significantly reduces false alarms associated with various intelligent detection scenarios, including tripwire, intrusion, fast movement, parking detection, loitering detection, and gathering detection.
Face Detection
Face Detection technology efficiently identifies faces in images. Powered by deep learning algorithms, it supports face detection, tracking, capture, and selection of the best face image, generating a face snapshot.
Smart Sound Detection
Smart Sound Detection technology, utilizing deep learning algorithms, identifies various sounds such as screams, glass breaking, and more.
People Counting
People Counting technology, powered by deep learning algorithms, tracks and processes moving human body targets to provide accurate statistics for entry, exit, and in-area counts. When integrated with a management platform, it generates customized reports to fulfill your requirements
Video Metadata
Video Metadata technology, driven by deep learning algorithms, detects, tracks, captures vehicles, non-motor vehicles, and people, selecting the best images and extracting their attributes.
Cyber Security
The network cameras incorporate a range of security technologies, including authentication, access control protocols, trusted protection, encryption for transmission and storage. These security measures bolster the camera’s defense against external cyber threats and safeguard against malicious programs compromising the device.
IP67
The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.
Wide Voltage
The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
FEATURES
- 8-MP 1/1.8″ CMOS image sensor, low luminance, and high definition image.
- Outputs max. 8 MP (3840×2160) @25/30fps.
- Built-in IR LED, and the max. illumination distance is 50 m.
- ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC.
- 12 VDC/PoE power supply; ePoE.
- IP67 protection.
- SMD 3.0.
SPECIFICATIONS
| Camera | |
|---|---|
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 4 GB |
| RAM | 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.0008 lux@F1.6 (Color, 30 IRE) 0.0004 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | 50 m (164.04 ft) (IR) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 2 (IR LED) |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
Lens |
| Lens Type | Fixed-focal |
| Lens Mount | M16 |
| Focal Length | 2.8mm |
| Max. Aperture | F1.6 |
| Field of View | H: 111° / V: 59° / D: 131° |
| Iris Control | Fixed |
| Close Focus Distance | 1.8 m |
| DORI Distance |
Detect : 85.4 m (280.18 ft) Observe : 34.2 m (112.20 ft) Recognize : 17.1 m (56.10 ft) Identify : 8.5 m (27.89 ft) |
Intelligence |
| EPTZ | Yes |
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection |
| Smart Object Detection | Smart abandoned object / smart missing object |
| SMD 3.0 | Less false alarm, longer detection distance |
| AI SSA | Yes |
| Face Detection | Face detection / track / snapshot / snapshot optimization / optimal face snapshot upload / face enhancement / face exposure / face attributes extraction including 6 attributes and 8 expressions / face snapshot set as face / one-inch photo or custom / snapshot strategies (real-time snapshot / quality priority and optimization snapshot) / face angle filter / optimization time setting. |
| People Counting | Tripwire people counting / generating and exporting report (day/week/month/year) / people counting in area and queue management / generating and exporting report (day/week/month) / 4 rules can be set for tripwire / people counting in area and queue management. |
| Heat Map | Yes |
| Video Metadata | Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling. Non-motor vehicle attributes: type, color, number of people, top type and color, hat. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Smart Sound Detection | Yes | Video |
| Video Compression | H.265 / H.264 / H.264H / H.264B / MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+ / Smart H.264+ |
| AI Coding | AI H.265 / AI H.264 |
| Video Frame Rate | Main stream: 3840 × 2160@(1–25/30 fps) Sub stream: D1@(1–25/30 fps) Third stream: 1080p@(1–25/30 fps) Fourth stream: 720p@(1–10 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 4 streams |
| Resolution | 3840 × 2160 / 3072 × 2048 / 3072 × 1728 / 2592 × 1944 / 2688 × 1520 / 2560 × 1440 / 2048 × 1535 / 2304 × 1296 / 1080p (1920 × 1080) / 1.3M (1280 × 960) / 720p (1280 × 720) / D1 (704 × 576/704 × 480) / VGA(640 × 480) / CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR / VBR |
| Video Bit Rate | H.264: 32 kbps–16384 kbps H.265: 12 kbps–13568 kbps |
| Day/Night | Auto(ICR) / Color / B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto / natural / street lamp / outdoor / manual / regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Defog | Yes |
| Image Rotation | 0° / 90° / 180° / 270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 8 areas | Audio |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 | Alarm |
| Alarm Event | No SD card / SD card full / SD card error / network disconnection / IP conflict / illegal access / motion detection / video tampering / tripwire / intrusion / fast moving / abandoned object / missing object / loitering detection / people gathering / parking detection / scene changing / audio detection / voltage detection / external alarm / face detection / video metadata / SMD / people counting in area / stay detection / people counting / people number error detection / queue people number alarm / queue time alarm / security exception | Network |
| Network Port | RJ-45 (10/100 Enhancement Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4 / IPv6 / HTTP / TCP / UDP / ARP / RTP / RTSP / RTCP / RTMP / SMTP / FTP / SFTP / DHCP / DNS / DDNS / QoS / UPnP / NTP / Multicast / ICMP / IGMP / NFS / SAMBA / PPPoE / SNMP / P2P |
| Interoperability | ONVIF (Profile S/Profile G/Profile T) / CGI |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | FTP / SFTP / Micro SD card (support max. 512 GB) / NAS |
| Browser | IE: IE 9 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and later |
| Management Software | SmartPSS Lite / DSS / DMSS |
| Mobile Client | iOS / Android |
| Cyber Security | Configuration encryption / trusted execution / Digest / security logs / WSSE / account lockout / syslog / video encryption / 802.1x / IP/MAC filtering / HTTPS / trusted upgrade / trusted boot / firmware encryption / generation and importing of X.509 certification | Certification |
| Certifications | CE-LVD: EN62368 ~ 1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL62368 ~ 1 & CAN/CSA C22.2 No. 62368 ~ 1-14 |
Port |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: wet contact, 5mA 3V–5V DC |
| Alarm Output | 1 channel out: wet contact, 300mA 12V DC | Power |
| Power Supply | 12 VDC/PoE (802.3af)/ePoE |
| Power Consumption | Basic: 4.1 W (12 VDC); 5.2 W (PoE); Max. (H.265+ WDR+ Intelligence on+IR on): 6.8 W (12 VDC); 8.8 W (PoE) |
Environment |
| Operating Temperature | –40°C to +60°C (–40°F to +140°F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40°C to +60°C (–40°F to +140°F) |
| Storage Humidity | 10%–95% (RH), non-condensing |
| Protection | IP67 | Structure |
| Casing Material | Inner core: Metal Cover: Metal Decoration ring: Plastic Quick install mounting plate: Metal |
| Product Dimensions | 99.1 mm × Φ121.9 mm (3.90" × Φ4.80") |
| Net Weight | 500 g (1.10 lb) |
| Gross Weight | 770 g (1.70 lb) |
