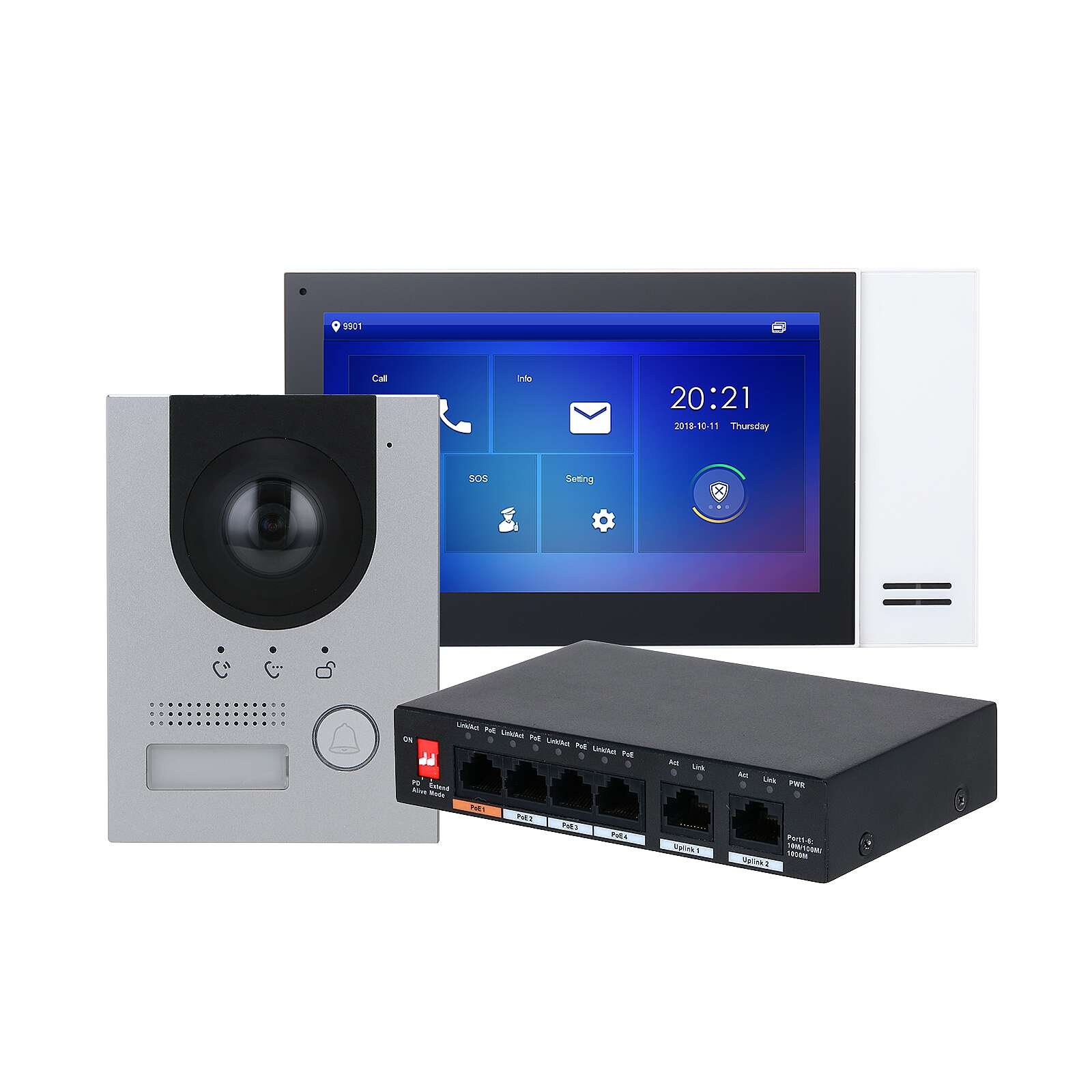

IP Door Station Kit, Station + Monitor + PoE Switch
$0.00
2MP Camera, 160° angle of view, IK07/IP65, Night vision, Surface/Flush mounted
7 inch TFT Touch Screen, 1024 × 600, Mic & Speaker Built-in
6 Port Unmanaged Desktop Gigabit Switch w/ 4 PoE Ports
Quantity:
2MP Camera, 160° angle of view, IK07/IP65, Night vision, Surface/Flush mounted
7 inch TFT Touch Screen, 1024 × 600, Mic & Speaker Built-in
6 Port Unmanaged Desktop Gigabit Switch w/ 4 PoE Ports
2MP Camera, 160° angle of view, IK07/IP65, Night vision, Surface/Flush mounted
7 inch TFT Touch Screen, 1024 × 600, Mic & Speaker Built-in
6 Port Unmanaged Desktop Gigabit Switch w/ 4 PoE Ports
Product Information
Door Station Specifications
| System Parameter | |
|---|---|
| Host Processor | Embeded processor |
| Camera | 1/2.8" 2MP CMOS high definition low illumination colorful |
| Angle of view | D:180° H:160° V:82° |
| Focal length | 1.95 mm |
| WDR | Support |
| Noise reduction | Noise suppression and echo cancellation |
| Video encoding | H.264 |
| Frame rate | PAL:25 fps NTSC:30 fps |
| Audio encoding | G.711 U |
| Video bit rate | 256K to 2M |
| Light compensation | IR Supplement | Port |
| RS-485 Port | 1 |
| Alarm Output | 1 |
| Lock Control | 1 set |
| Door Status Detection | 1 set |
| Eoc | 1 set |
| Exit Button | 1 |
| Tamper Switch | 1 set |
| Network Interface | 1 |
| Power Output | 12V/100mA | Alarm Parameter |
| Tamper Alarm | Support |
| Door Sensor Timeout Alarm | Support |
| Alarm Iutput | Support |
| Alarm Output | Support | User Parameter |
| Audio Input | Built-in Omnidirectional Microphone |
| Audio Output | Built-in Loudspeaker |
| Status Indicator | calling / communication / unlocked |
| Communication Methods | Digital communication |
| Unlock Mode | Remote unlocking |
| Auto Snapshot | Support |
| Leave Videos or Text Messages | Support |
| Storage | Extended 64G TF Card |
| WEB Configuration | Support |
| Real-Time Monitor | Support | Normal Parameter |
| Ingress Protection | IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.) |
| Network Update | Online update |
| Housing material | Alumimum |
| Power supply mode | 2-Wire Inteface or PoE |
| Rated Power | 12V DC |
| Rated Current | 1A |
| Installation method | Supports surface mounted and flush mounted |
| Dimensions | 130 × 96 × 28.5mm (5.1 × 3.78 × 1.1 inches) |
| Working Temperature | −30°C to +60°C (−22°F to +140°F) |
| Working Humidity | 10%–90% |
| Atmospheric Pressure | 86kPa–106kPa |
| Power Consumption | ≤12W |
| Total Weight | 0.35kg/0.77lb |
| Environmental Requirement | Outdoor |

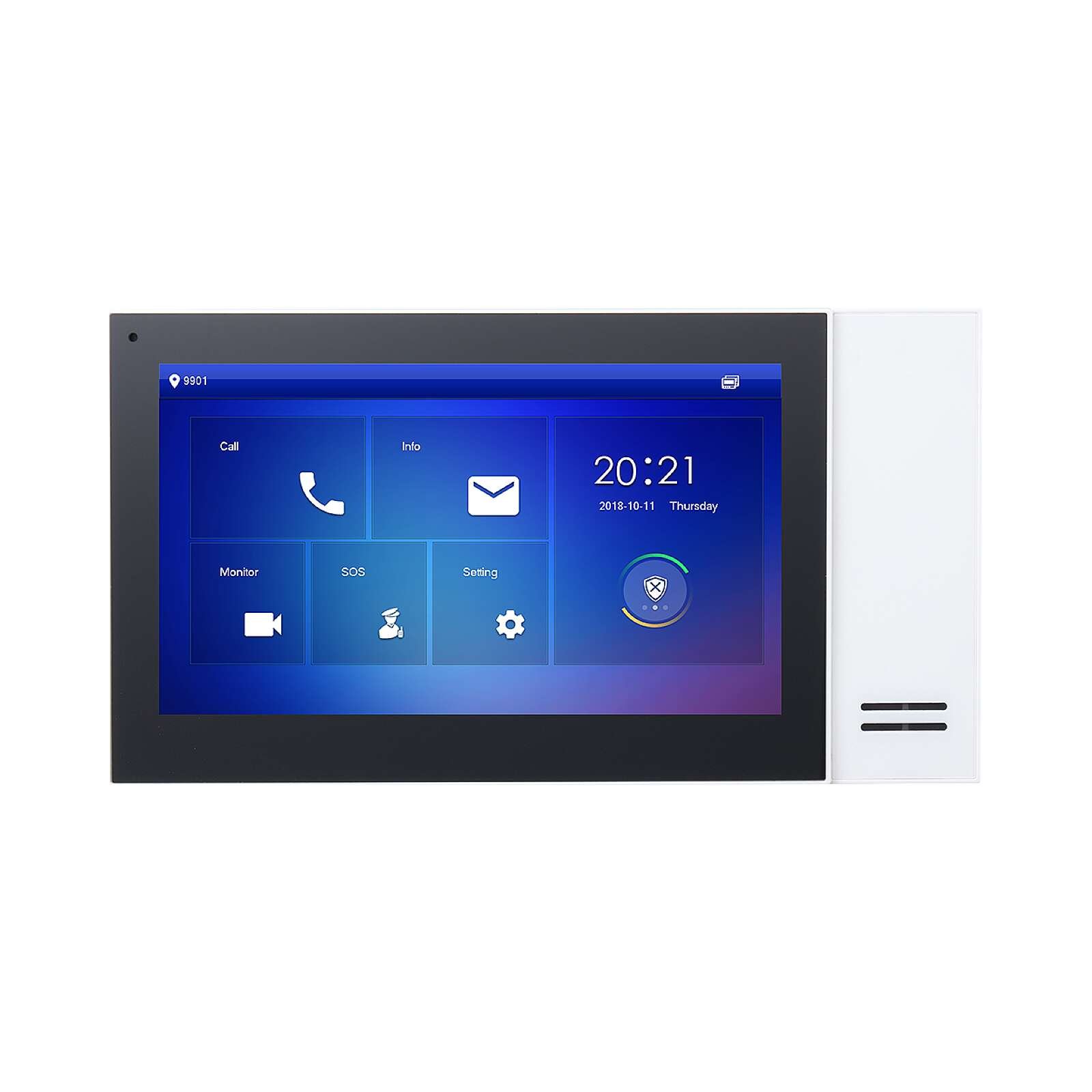

Monitor Specifications
| Main Processor | High performace embedded processor |
| Operating System | Embedded LINUX OS |
| Screen Type | Capacitive screen |
| Display | 7-inch TFT screen |
| Resolution | 1024 × 600 |
| Video Compression | H.264 |
| Audio Compression | G.711A / G.711U / PCM |
| Audio Input | 1 channel all-direction microphone |
| Audio Output | Built-in 1.5W loudspeaker |
| Audio Mode | Support dual-way bidirectional talk |
| Audio Enhancement | Support echo cancellation/DNR |
| Audio Bit Rate | 16 kbps |
| Communication Mode | Full digital |
| Information Release | Support to receive and view notifications issued by center |
| Leave Videos or Text Messages | Support |
| DND Mode | Support to set DND period |
| Sub-station Quantity | 9 |
| Alarm Input | 6 channel (switch quantity) |
| Alarm Output | 1 channel |
| Network | 1 RJ-45 |
| SOS Alarm | Support |
| Casing | PC+ABS |
| Appearance Color | Appearance Color |
| Power Supply | Standard PoE / DC 12V 1A |
| Installation | Wall mount |
| Accessories | Default bracket / Default alarm cable |
| Dimensions | 119.6 mm × 221.5 mm × 21.5 mm (4.71" × 8.72" × 0.85") |
| Operating Temperature | −10°C to +55°C (+14°F to +131°F) |
| Operating Humidity | 10%RH-95%RH |
| Power Consumption | Standby≤4W, work≤6W |
| Gross Weight | 0.35 Kg (0.77 lb) |
| Power supply mode | PoE |
| Storage | Support Micro SD, maximum memory capacity 32 G, standard memory capacity 8 G |
Switch Specifications
| Hardware Feature | |
|---|---|
| Ethernet Port | Port1 ~ 4: 4 × RJ-45 10/100/1000M (PoE) Port5 ~ 6: 2 × RJ-45 10/100/1000M (uplink) |
| PoE Power Consumption | Port1≤ 60 W (Hi-PoE) Port2 ~ 4 ≤30 W Total≤60 W |
| Power Consumption | Idling: 0.96 W Full load: 60 W |
| Standard | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x | PoE |
| PoE Protocol | IEEE802.3af / IEEE802.3at / Hi-PoE |
| Power Supply Pin | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
| Long Distance | 250 m long distance PoE transmission |
| PoE Power Management | Yes |
| PoE Watchdog | Yes | Performance |
| Switching Capacity | 14 Gbps |
| Packet Forwarding Rate | 8.928 Mbps |
| Packet Buffer Memory | 1 Mbit |
| MAC Address Table | 2 K |
| Flow Control | Enable by default |
| Working Temperature | –10°C to 55°C (+14°F to +131°F) |
| Application Humidity | 5% ~ 95% (RH) | General |
| Power Input | 48 V – 57 V DC |
| Lighting Protection | Common mode: 4 kV Differential mode: 2 kV |
| ESD Protection | Air discharge: 8 kV Contact discharge: 6 kV |
| Wall-mount Installation | Yes |
| Anti-theft Lock Hole | Yes |
| Weight | 0.30 kg (0.64 lb) |
| Dimension | 130 mm × 85 mm × 26 mm (5.12" × 3.35" × 1.02") |
