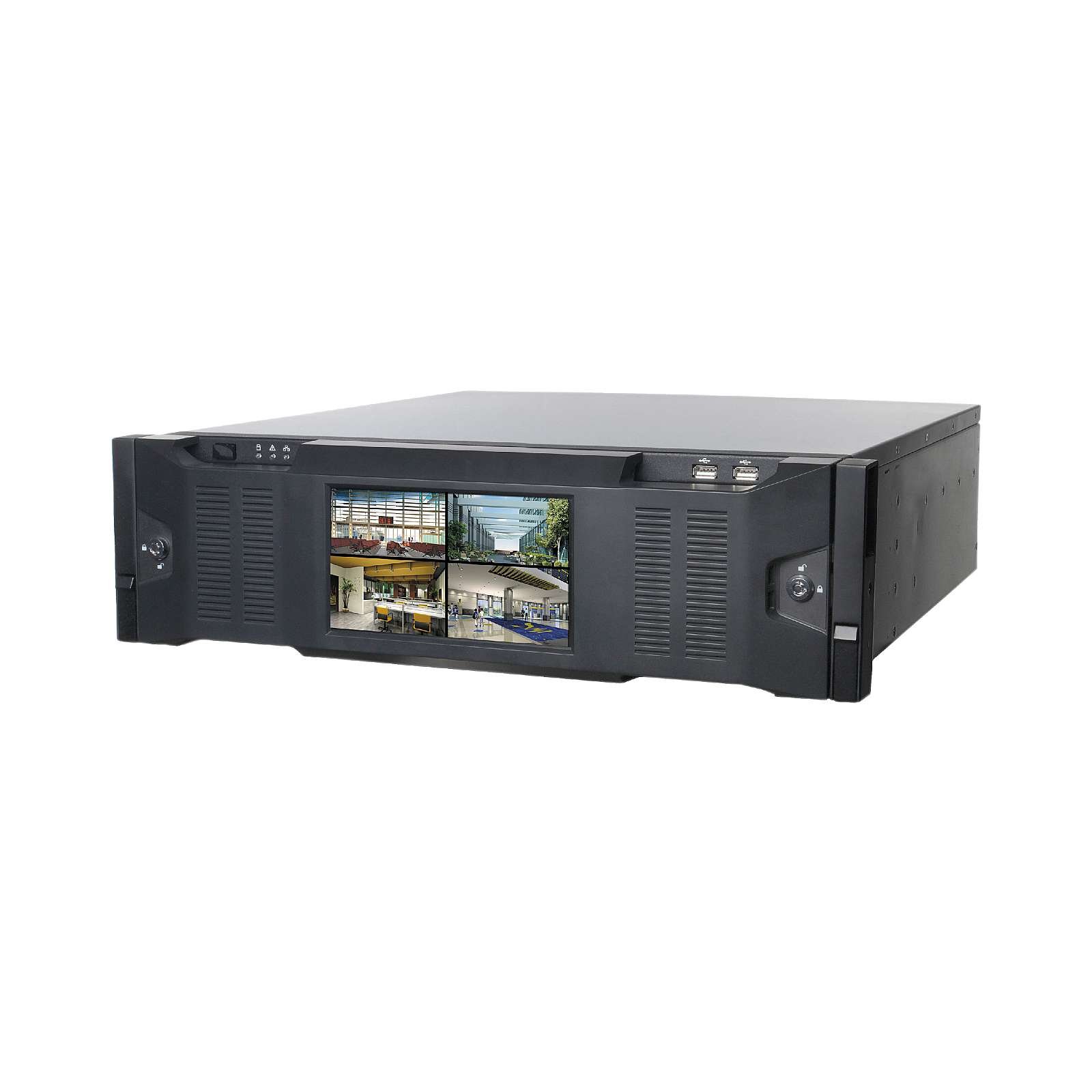

Ultra 4K H265 64 / 128CH 16HDD upto 16HDD NVR

$0.00

Embedded processor • Smart H.264 dual-stream video compression • Support HDCVI/AHD/CVBS/TVI/IP video inputs • Max 64 channels IP camera inputs • each channel up to 12MP • Max 256Mbps Incoming Bandwidth • 384Mbps Forwarding Bandwidth • Smart Search and Intelligent Video System • Support HDCVI/CVBS Loop Out

Quantity:
Add To Cart

Embedded processor • Smart H.264 dual-stream video compression • Support HDCVI/AHD/CVBS/TVI/IP video inputs • Max 64 channels IP camera inputs • each channel up to 12MP • Max 256Mbps Incoming Bandwidth • 384Mbps Forwarding Bandwidth • Smart Search and Intelligent Video System • Support HDCVI/CVBS Loop Out

Embedded processor • Smart H.264 dual-stream video compression • Support HDCVI/AHD/CVBS/TVI/IP video inputs • Max 64 channels IP camera inputs • each channel up to 12MP • Max 256Mbps Incoming Bandwidth • 384Mbps Forwarding Bandwidth • Smart Search and Intelligent Video System • Support HDCVI/CVBS Loop Out

Product Accordion Example

Product Information

System Overview

Eyemax next generation network video recorder offers unparalleled recording technology for IP video surveillance applications. For applications where details are critical for identification, this enterprise-level NVR provides a powerful Intel processor with up to 4K resolution. Additionally, the NVR features a mouse shortcut operation menu, remote management and control, centre storage, edge storage, and back up storage. This NVR is ideal for a wide range of applications such as public safety, transportation stations, government institutions, hotel resorts, shopping malls, city centers, and financial institutions, where demand expansion flexibility, high reliability and centralized storage management. The NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems with or without a video management system (VMS). Its open architecture supports multi-user access and is compatible with ONVIF 2.4, enabling interoperability when combined with 4K cameras.

Functions

RAID 0/1/5/6/10

Offering a balance between storage performance, storage capacity, and data integrity, the NVR features Fruitfull RAID 0/1/5/6/10 for faster and safer recording.

Fisheye Dewarping

The NVR features multiple fisheye dewarping modes to make viewing video easy whether its live or during playback.

N+M Hot Standby

The highly reliable redundancy N+M Hot Standby design provides a secure, fail over technique ensuring immediate backup. In the event of a system failure, the slave instantly takes over the master ensuring no data is lost.

4K Resolution

The NVR supports 4K ultra HD resolution (3840 × 2160) for recording, live viewing and playback.

Intelligent Video System (IVS)

With built-in intelligent video analytics, the NVR has the ability to detect and analyze moving objects for improved video surveillance. The NVR provides optional standard intelligence at the edge allowing detection of multiple object behaviors such as abandoned or missing objects. IVS also supports Tripwire analytics, allowing the camera to detect when a pre-determined line has been crossed, People Counting, ideal for business intelligence, and Facial Detection, for searching or identification of individuals.

Heat Map

The NVR’s Heat Map option highlights the areas with the highest concentration of people. This information can then be exported into a customized report to assist in business or forensic analysis.

Point of Sale (POS)

Ideal for grocery and retail stores, the optional POS solution allows the NVR to receive a POS transaction via corresponding video. This feature allows merchants to analyze specific transactions via the Fuzzy search Algorithm.

Smart Tracking

The auto tracking PTZ feature automatically tracks a moving target throughout the camera’s field of view. This function is ideal for following an object as it moves through airports, parking lots, city centers, or other applications.

ANR (Automatic Network Replenishment Technology)

Video record in SD card in IP cameras when the network breaks down, and after the network recovered, the video will be transferred to NVR and then recorded in it.

SPECIFICATIONS

System
Main Processor Intel Quad-core Processor
Operating System Embedded LINUX

Audio and Video
IP Camera Input 64/128 Channel
Two-way Talk 1 Channel Input, 1 Channel Output, RCA

Display
Interface 2 HDMI (up to 3840 × 2160 , Different Source), 1 VGA 4 HDMI (Optional)
Resolution 3840 × 2160 , 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768
Multi-screen Display 1st Screen: 1/4/8/9/16/25/36 2nd Screen: 1/4/8/9/16
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Recording
Compression H.265/H.264/MJPEG
Resolution 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P etc.
Record Rate 384Mbps
Bit Rate 16Kbps ~ 20Mbps Per Channel
Record Mode Manual, Schedule (Regular, MD (Motion Detection), Alarm, IVS), Holiday, Stop
Record Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Video Detection and Alarm
Trigger Events Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering
Alarm input 16 Channel, Low Level Effective, Green Terminal Interface
Relay Output 8 Channel, NO/NC Programmable, Green Terminal Interface
Tracking Trigger Event Zoom, Tracking, Recording, Preset, Snapshot, Alarm, etc.

Playback and Backup
Playback 128 Mbps in Raid 5 Mode; 64 Mbps in single HDD Mode
Search Mode Time /Date, Alarm, MD and Exact Search (accurate to second)
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network/eSATA Device

Third-party Support
Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Network
Interface 4 RJ-45 Ports (10/100/1000Mbps)
Ethernet Port 4 Ethernet Ports Joint Working or 4 Independent 1000Mbps Ethernet Ports
PoE N/A
Network Function HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Optical Fiber Interface 2 Giga Optical Fiber Interface
Max. User Access 128 users
Smart Phone iPhone, iPad, Android
Interoperability ONVIF 2.4, CGI Conformant

Storage
Internal HDD 16 SATA III Ports
HDD Mode Single, Raid 0/1/5/6/10(Enterprise-level HDDs are recommended), Support Global HDD Hot-spare
eSATA 1 eSATA Port (Please contact technical engineer to confirm the compatible device)
SAS 1 Mini SAS Port, for Storage Expansion

Auxiliary Interface
Front Cover Support Hot-swap, 7-inch HD LCD (1920 × 1080 , 1280 × 1024, 1024 × 768)
USB 4 USB Ports (2 USB 2.0 , 2 USB 3.0 )
RS232 1 Port, for PC Communication and Keyboard
RS485 1 Port, for PTZ Control

Electrical
Power Supply AC100V ~ 240V, 50 ~ 60 Hz
Power Consumption <51W (Without HDD)

Environmental
Operating Conditions −10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions −20°C ~ +70°C (−4°F ~ +158°F), 0 ~ 90% RH

Construction
Dimensions 3U, 485mm × 529.9mm × 133.2mm (19.1" × 20.9" × 5 .2")
Net Weight 18.1kg (39.9 lb) (without HDD)
Gross Weight 27.5kg (60.6 lb)
Installation Rack-mounted

Certifications
CE EN55022, EN55024, EN50130 ~ 4, EN60950 ~ 1
FCC Part 15 Subpart B, ANSI C63.4 ~ 2014
UL UL 60950 ~ 1 and CAN/CSA C22.2 No.60950 ~ 1
